Dip speed, achieving ultra-low speed of 1 nanometer per second and 3D control! Currently, a video introduction is available on the HP.

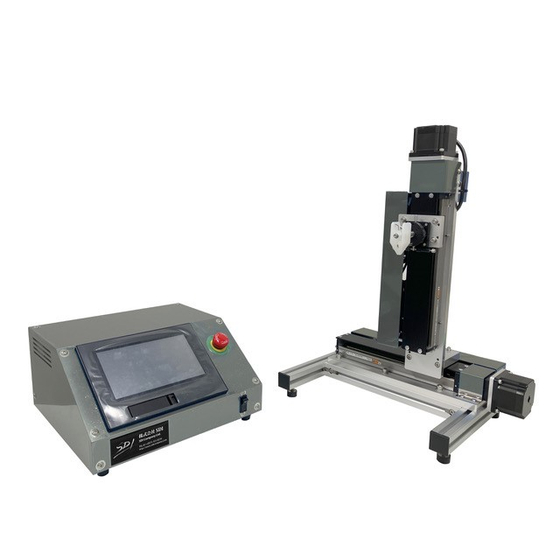

The dip coater, equipped with the industry's largest range of lifting speeds (from 1 nm/sec to 60 mm/sec), is the next-generation coating solution. Its wide range of applications offers remarkable innovation. This equipment provides highly efficient solutions for the synthesis of fine structures and nanomaterials in the field of nanotechnology, the formation of fine patterns in semiconductor manufacturing, and the coating of electronic components. For biomedical researchers, it enables control over cell culture substrates and biocompatible coatings, greatly contributing to research on biomaterials and cell culture. In the fields of optics and photonics, it achieves high-precision and uniform optical coatings, supporting the performance enhancement of optical devices. Furthermore, for materials science researchers, it allows coating and thin film growth at different speeds, accelerating the development of new materials and catalysts. This dip coater offers flexibility and efficiency in research, development, and manufacturing processes, enabling innovative outcomes. Consider this equipment as an option to achieve a step change towards the future. *For more details, please download the catalog or contact us.*
Inquire About This Product
basic information
【Main Specifications】 1. Stroke: Z-axis: 150mm, X-axis: 150mm 2. Minimum speed: 1nm/sec 3. Maximum speed: 60mm/sec 4. Operation method: Touch panel 5. Screen language: Japanese/English 6. Number of processing speed change points: 16 points 7. Number of stop position specification points: 16 points 8. Number of stop time specification points: 16 points 9. Continuous operation mode: Yes 10. Manual operation mode: Yes 11. Number of stored programs: 8 programs 12. Monitor function: Current speed: Yes 13. Monitor function: Current position: Yes 14. Monitor function: Remaining operation time: Yes 15. Repeated operation function: Yes 16. Standard clip: PP material 17. Utility: AC100V, 300VA 18. Portable weight: 500g 19. Maximum processing size: H: 150mm 20. Linear operation mode: No 21. Device size: Excluding protrusions (weight): W: 442×D: 250×H: 451mm 22. Control box size: Excluding protrusions (weight): W: 300×D: 285×H: 163 (7kg)
Price range
P5
Delivery Time
P4
Applications/Examples of results
The dip coater, with a wide range of withdrawal speeds (from 1 nm/sec to 60 mm/sec), is suitable for various applications: 1. **Nanotechnology**: Controls the growth and modification of nanomaterials at low speeds of less than 1 nm/sec, contributing to nanotechnology research. Enables the synthesis of nanoparticles and nanostructures. 2. **Semiconductor Manufacturing**: Fine pattern formation and thin film coating. Improves production efficiency of semiconductor chips. 3. **Biomedicine**: Coating for cell culture substrates and biomaterials. Supports cell research and tissue engineering across a wide range of speeds. 4. **Optics and Photonics**: Coating for lenses, mirrors, and optical devices. Allows for high-precision optical coatings at different speeds. 5. **Materials Science and Research**: Adaptable for the synthesis and research of new materials. Supports the development of innovative processes in catalysis, coatings, and thin films. This dip coater is used in a wide range of applications, enabling innovative processes through its broad speed settings, providing flexibility and efficiency across many fields.
