A linear model that achieves highly reproducible film formation with stable lift and drop control.

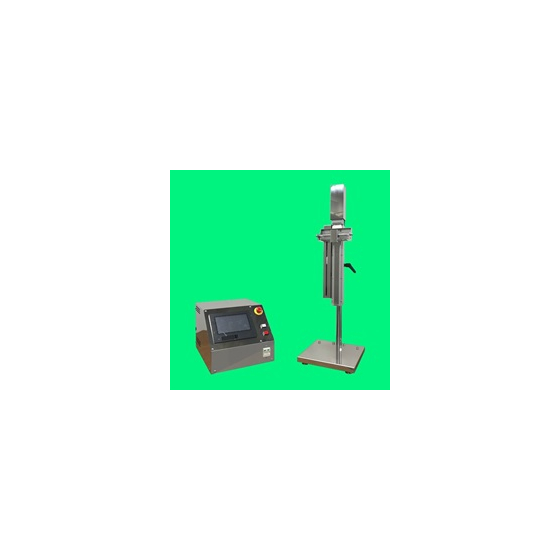

The linear dip coater is a standard device with high precision control, featuring a stroke of 300 millimeters and a minimum speed of 0.1 millimeters per second. By raising and lowering the sample linearly at a stable speed, it ensures uniformity and reproducibility of film thickness. Its simple structure and excellent operability make it a model that can be widely introduced from laboratories to prototype processes. --------------------------------------------- Currently, a video introduction is available on the HP. ---------------------------------------------
Inquire About This Product
basic information
【Main Specifications】 1. Stroke: 300mm 2. Minimum Speed: 0.1mm/sec 3. Maximum Speed: 200mm/sec 4. Operation Method: Touch Panel 5. Screen Language: Japanese/English 6. Number of Processing Speed Change Points: 16 points 7. Number of Stop Position Designation Points: 16 points 8. Number of Stop Time Designation Points: 16 points 9. Continuous Operation Mode: Yes 10. Manual Operation Mode: Yes 11. Number of Stored Programs: 8 programs 12. Monitor Function: Current Speed: Yes 13. Monitor Function: Current Position: Yes 14. Monitor Function: Remaining Operation Time: Yes 15. Repetitive Operation Function: No 16. Standard Clip: SUS Material 17. Utility: AC100V, 400VA 18. Portable Weight: 1kg 19. Maximum Processing Size: H:300mm 20. Linear Operation Mode: Yes 21. Device Size: Excluding Protrusions (Weight): W:270 D:315 H:1066 (16kg) 22. Control Box Size: Excluding Protrusions (Weight): W:303 D:390 H:267 (11kg)
Price range
P5
Delivery Time
Applications/Examples of results
It is widely used in the formation of optical thin films, research on functional materials, and prototype production of electronic components. It is particularly introduced in basic research at universities and corporate research institutes, as well as in reproducibility tests for the development of new materials.
Line up（15）
| Model number | overview |
|---|---|
| ND-0407-N1-CE | High-precision dip coater enabling thin film formation with nanometer accuracy. |
| MD-0408-N1-CE | A tabletop device ideal for precision coating of fine structure samples and small substrates. |
| DT-0303-N1-CE | Space-saving, high-precision tabletop dip coater ideal for small samples. |
| DT-0502-S3 | A highly versatile tabletop coater ideal for research and prototyping of medium-sized samples. |
| DT-1911 | Supports up to 900mm, widely accommodating everything from research to prototyping of large circuit boards. |
| DT-0001-N1 | Portable and lightweight coater that can be used in any research environment. |
| DT-2412-N1-EP | Explosion-proof dip coater that ensures safety and precise control even in hazardous environments. |
| LD-2404-N1 | A high-performance model that integrates straight lines and rotation, enabling a variety of coatings. |
| OD-2304-N1-CE | Advanced dip coater that enhances the efficiency of multilayer film formation using interactive dipping. |
| DT-1508-N1 | A high-performance device capable of uniformly coating large samples over 1 meter. |
| MD-1405-S1 | Pursuing surface precision to the limit, a high-precision device ideal for fine material research. |
| DT-1609-4D1 | Achieving complex shapes and multi-directional coating freely with 4-axis control. |
| DT-1704 | High-performance dip coater compatible with large-area substrates, aimed at industrial applications. |
| DT-1303-S1 | Special dip coater for long materials and rod-shaped samples. |
| DT-1911 | Supports up to 900mm, widely accommodating everything from research to prototyping of large circuit boards. |
