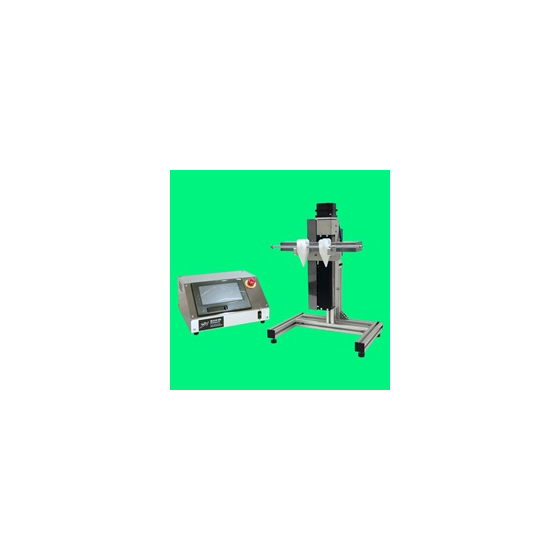

Shaping a fine future. Innovate with the ultimate precision dip coater at 1μm/sec.
Currently, we are streaming videos on our website. If you are looking for the best fine film formation, a dip coater with a minimum speed of 1μm/sec is the option. Our dip coater is suitable for various applications that require precise coatings, such as semiconductor devices, biosensors, and optical elements. By operating at a low speed of 1μm/sec, it ensures a uniform and precise coating, maximizing the performance of the products. With advanced controllability and reliability, we have built a track record across a wide range of fields, from research institutions to industry. Our dip coater meets the needs for fine coatings and enhances product quality and performance. If you are pursuing reliability and efficiency, please try our dip coater. *For more details, please download the catalog or contact us.*
Inquire About This Product
basic information
【Main Specifications】 1. Stroke: 150mm 2. Minimum Speed: 1μm/sec (1nm/sec) 3. Maximum Speed: 60mm/sec (2mm/sec) 4. Operation Method: Touch Panel 5. Screen Language: Japanese/English 6. Number of Processing Speed Change Points: 16 Points 7. Number of Stop Position Designation Points: 16 Points 8. Number of Stop Time Designation Points: 16 Points 9. Continuous Operation Mode: Yes 10. Manual Operation Mode: Yes 11. Number of Stored Programs: 8 Programs 12. Monitoring Function: Current Speed: Yes 13. Monitoring Function: Current Position: Yes 14. Monitoring Function: Remaining Operation Time: Yes 15. Repetitive Operation Function: Yes 16. Standard Clip: PP Material 17. Utility: AC100V, 250VA 18. Portable Weight: 1kg 19. Maximum Processing Size: H:300mm 20. Linear Operation Mode: No 21. Device Size: Excluding Protrusions (Weight): W:430×D:480×H:860mm (11kg) 22. Control Box Size: Excluding Protrusions (Weight): W:300×D:285×H:163mm (7kg)
Price information
-
Price range
P5
Delivery Time
※The usual delivery time is 45 days after the order is received.
Applications/Examples of results
A dip coater with a minimum speed of 1μm/sec is particularly suitable for the formation of fine coatings. For example, it has a strong track record in applications related to optical elements, semiconductor devices, and biomaterials. This dip coater provides precise control and uniform coating speed, with the following examples of achievements: 1. Semiconductor device manufacturing: A dip coater operating at a low speed of 1μm/sec is suitable for the production of fine semiconductor devices. For instance, uniform coating formation is required in the manufacturing of integrated circuits (ICs) and microchips. 2. Optical element manufacturing: When applying fine coatings to optical elements such as lenses and filters, a low-speed dip coater at 1μm/sec is useful. This enables the realization of high-precision optical performance. 3. MEMS (Micro-Electro-Mechanical Systems) manufacturing: In MEMS devices where coating on fine structures is necessary, a low-speed dip coater is used to ensure high manufacturing precision. In these examples, the low-speed dip coater at 1μm/sec demonstrates excellent performance in the formation of fine coatings.
