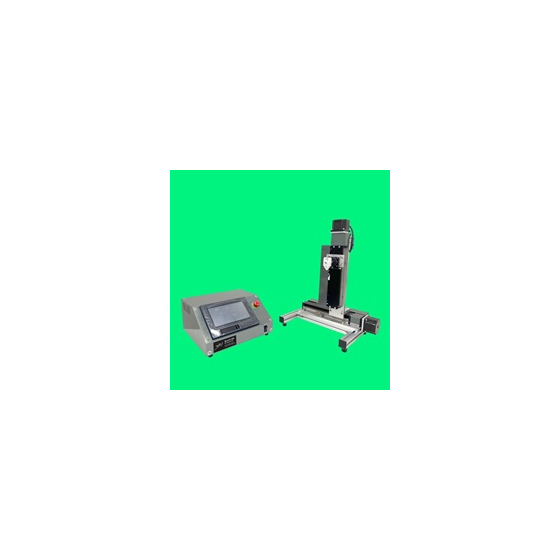

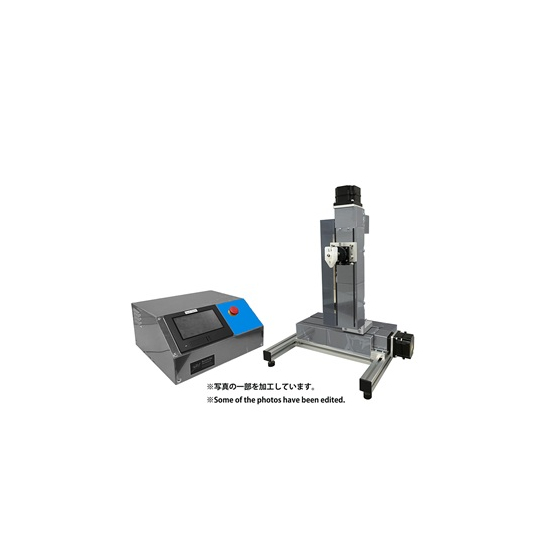

High-precision dip coater enabling thin film formation with nanometer accuracy.
++++++++++++++++++++ Currently, a video introduction is available on our website. ++++++++++++++++++++ The Nano Dip Coater is a high-precision dip coater that enables ultra-low speed control starting from one nanometer per second. It features a stroke of 150 millimeters on the Z-axis and 150 millimeters on the X-axis, achieving precise positioning and uniform coating. With control possible at a minimum unit of one nanometer, it is suitable for the fabrication of nano-thin films and ultra-precise samples. The touch panel operation allows for intuitive setting of conditions, making it user-friendly for researchers and engineers. It supports highly reproducible film formation in materials research and advanced device development. *For more details, please download the catalog or contact us.*
Inquire About This Product
basic information
【Main Specifications】 1. Stroke: Z-axis: 150mm, X-axis: 150mm 2. Minimum Speed: 1nm/sec 3. Maximum Speed: 60mm/sec 4. Operation Method: Touch Panel 5. Screen Language: Japanese/English 6. Number of Processing Speed Change Points: 16 points 7. Number of Stop Position Designation Points: 16 points 8. Number of Stop Time Designation Points: 16 points 9. Continuous Operation Mode: Yes 10. Manual Operation Mode: Yes 11. Number of Stored Programs: 8 programs 12. Monitoring Function: Current Speed: Yes 13. Monitoring Function: Current Position: Yes 14. Monitoring Function: Remaining Operation Time: Yes 15. Repetitive Operation Function: Yes 16. Standard Clip: PP Material 17. Utility: AC100V, 300VA 18. Portable Weight: 500g 19. Maximum Processing Size: H: 100mm 20. Linear Operation Mode: No 21. Device Size: Excluding Protrusions (Weight): W: 442×D: 250×H: 451mm 22. Control Box Size: Excluding Protrusions (Weight): W: 300×D: 285×H: 163 (7kg)
Price range
P5
Delivery Time
P4
Applications/Examples of results
This product is widely used in nanotechnology research and the development of high-performance devices. Specific examples include the formation of semiconductor nano-thin films, surface treatment of microfluidic devices, the production of thin films for high-sensitivity sensors, and research on optical devices. In research applications, it is introduced for new material exploration and nanoscale surface modification experiments in universities and research institutions. In industrial applications, it is utilized in the prototype process and evaluation lines of precision components, boasting a strong track record in fields that require precision management at the nano level.
Detailed information
-
The nano dip coater is a high-precision dip coater that enables ultra-low speed control starting from one nanometer per second. It features a stroke of 150 millimeters on the Z-axis and 150 millimeters on the X-axis, achieving precise positioning and uniform coating. With control possible at a minimum unit of one nanometer, it is suitable for the fabrication of nano films and ultra-precise samples. The touch panel operation allows for intuitive setting of conditions, making it user-friendly for researchers and engineers. It supports highly reproducible film formation in materials research and advanced device development.
Line up（15）
| Model number | overview |
|---|---|
| DT-2412-N1-EP | Explosion-proof dip coater that ensures safety and precise control even in hazardous environments. |
| ND-0407-N1-CE | High-precision dip coater enabling thin film formation with nanometer accuracy. |
| MD-0408-N1-CE | A tabletop device ideal for precision coating of fine structure samples and small substrates. |
| DT-0303-N1-CE | Space-saving, high-precision tabletop dip coater ideal for small samples. |
| LD-2404-N1 | A high-performance model that integrates straight lines and rotation, enabling a variety of coatings. |
| LD-1304-S2 | A linear model that achieves highly reproducible film formation with stable lift and drop control. |
| OD-2304-N1-CE | Advanced dip coater that enhances the efficiency of multilayer film formation using interactive dipping. |
| DT-0502-N1 | A highly versatile tabletop coater ideal for research and prototyping of medium-sized samples. |
| DT-0001-N1 | Portable and lightweight coater that can be used in any research environment. |
| DT-1508-N1 | A high-performance device capable of uniformly coating large samples of 1 meter. |
| MD-1405-S1 | Pursuing surface precision to the limit, a high-precision device optimal for fine material research. |
| DT-1609-4D1 | Achieve complex shapes and multi-directional coating freely with 4-axis control. |
| DT-1704 | High-performance dip coater compatible with large-area substrates, aimed at industrial applications. |
| DT-1303-S1 | Dedicated dip coater for long materials and rod-shaped samples. |
| DT-1911 | Supports up to 900mm, accommodating a wide range from research to prototyping of large circuit boards. |
