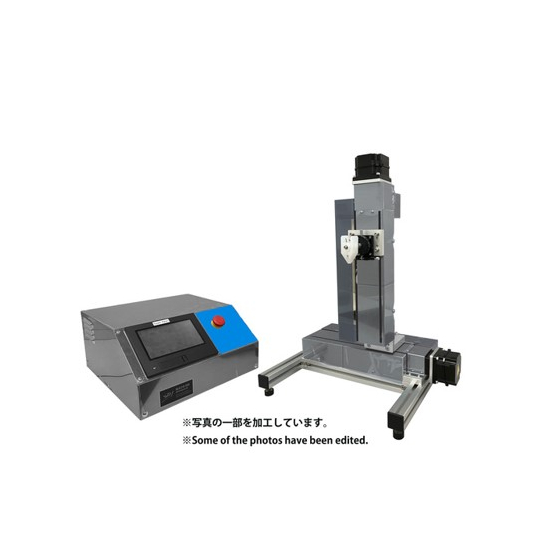

High-precision dip coater enabling thin film formation with nanometer accuracy.
The nano dip coater is a high-precision dip coater that enables ultra-low speed control from one nanometer per second. It features a stroke of 150 millimeters on the Z-axis and 150 millimeters on the X-axis, achieving precise positioning and uniform coating. With control possible at a minimum unit of one nanometer, it is suitable for the fabrication of nano-thin films and ultra-precise samples. The touch panel operation allows for intuitive setting of conditions, making it user-friendly for researchers and engineers. It supports highly reproducible film formation in materials research and advanced device development.
Inquire About This Product
basic information
【Main Specifications】 1. Stroke: Z-axis: 150mm, X-axis: 150mm 2. Minimum Speed: 1nm/sec 3. Maximum Speed: 60mm/sec 4. Operation Method: Touch panel 5. Screen Language: Japanese/English 6. Number of Processing Speed Change Points: 16 points 7. Number of Stop Position Designation Points: 16 points 8. Number of Stop Time Designation Points: 16 points 9. Continuous Operation Mode: Yes 10. Manual Operation Mode: Yes 11. Number of Stored Programs: 8 programs 12. Monitor Function: Current Speed: Yes 13. Monitor Function: Current Position: Yes 14. Monitor Function: Remaining Operation Time: Yes 15. Repeated Operation Function: Yes 16. Standard Clip: PP Material 17. Utility: AC100V-240V, 300VA 18. Portable Weight: 500g 19. Maximum Processing Size: H: 100mm 20. Linear Operation Mode: No 21. Device Size: Excluding Protrusions (Weight): W: 410 D: 256 H: 513 (11kg) 22. Control Box Size: Excluding Protrusions (Weight): W: 380 D: 400 H: 200 (10kg)
Price range
P5
Delivery Time
Applications/Examples of results
This product is utilized in microdevice research and material evaluation of small samples. Specific examples include surface coating of microchips and MEMS devices, production of samples for biosensors, and evaluation of small substrates in laboratories. In research applications, it is used for experiments in the prototyping stage and for examining small quantities of various samples, while in factory applications, it is introduced into initial development lines and evaluation equipment. Despite its small size, it demonstrates high precision performance and can accommodate a wide range of applications from prototype research to practical evaluation.
Line up（15）
| Model number | overview |
|---|---|
| MD-0408-N1-CE | A tabletop device ideal for precision coating of fine structure samples and small substrates. |
| OD-2304-N1-CE | Advanced dip coater that enhances the efficiency of multilayer film formation using interactive dipping. |
| DT-2412-N1-EP | Explosion-proof dip coater that ensures safety and precise control even in hazardous environments. |
| ND-0407-N1-CE | High-precision dip coater enabling thin film formation with nanometer accuracy. |
| DT-0303-N1-CE | Space-saving, high-precision tabletop dip coater ideal for small samples. |
| LD-2404-N1 | A high-performance model that integrates straight lines and rotation, enabling various coatings. |
| OD-2304-N1-CE | Advanced dip coater that enhances the efficiency of multilayer film formation using interactive dipping. |
| LD-1304-S2 | A linear model that achieves highly reproducible film formation with stable lift and drop control. |
| DT-0502-N1 | A highly versatile tabletop coater ideal for research and prototyping of medium-sized samples. |
| DT-0001-N1 | Portable and lightweight coater that can be used in any research environment. |
| DT-1508-N1 | High-performance equipment capable of uniformly coating large samples over 1 meter. |
| MD-1405-S1 | Pursuing surface precision to the limit, a high-precision device ideal for fine material research. |
| DT-1609-4D1 | Achieving complex shapes and multi-directional coating freely with 4-axis control. |
| DT-1303-S1 | Special dip coater for long materials and rod-shaped samples. |
| DT-1911 | Supports up to 900mm, widely accommodating everything from research to prototyping of large circuit boards. |
