Programmable with 16 segments × 16 patterns. Up to 256 segments possible with pattern linking.
Universal input (switchable between thermocouples, resistance temperature detectors, voltage, and current) Measurement accuracy: ±0.1% of displayed value Sampling period: 0.05 seconds 16 patterns × 16 segments (up to 256 segments with pattern linking) Equipped with 8-level PID function 11-segment 5-digit LCD display Easy operation with direct setting keys Front loader communication compatible Plug-in structure
Inquire About This Product
basic information
Input points: 1 point Input type (Universal input) Switchable between thermocouple, resistance temperature detector, voltage, and current Sampling period: 0.05 seconds Measurement accuracy: ±(0.1% of displayed value + 1 digit) Program control function: Up to 16 patterns, maximum 16 segments * Maximum 256 segments with pattern linking Time signal: 4 points Output 1 / Output 2 Relay contact output, SSR drive voltage pulse output: DC0/12V Current output: DC0–20mA, DC4–20mA Voltage continuous output: DC0–5V, DC1–5V, DC0–10V Transistor output Output 3 * Universal output SSR drive voltage pulse output: DC0/14V Current output: DC0–20mA, DC4–20mA Event function: 4 points Analog transmission output function: 1 point Loader communication function Digital output: 4 points Event input: 6 points CT input for heater disconnection alarm: Up to 2 points Communication function: RS-485 / RS-422A <General specifications> Power supply voltage: AC100–240V, AC/DC24V Safety standards: UL, cUL, CE marking, RCM
Price range
Delivery Time
Applications/Examples of results
Control of various heaters
Detailed information
-

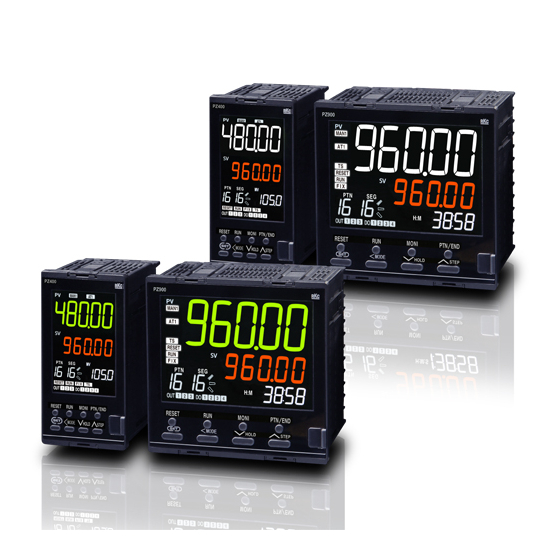

It displays various information on a large LCD screen, informing you of the current status. It is immediately clear whether the program is operating normally.
-
A free configuration tool, PROTEM2 (PZ series configuration tool), is available. Program pattern settings, time signal settings, and more can be easily configured with a clear graphical display.
