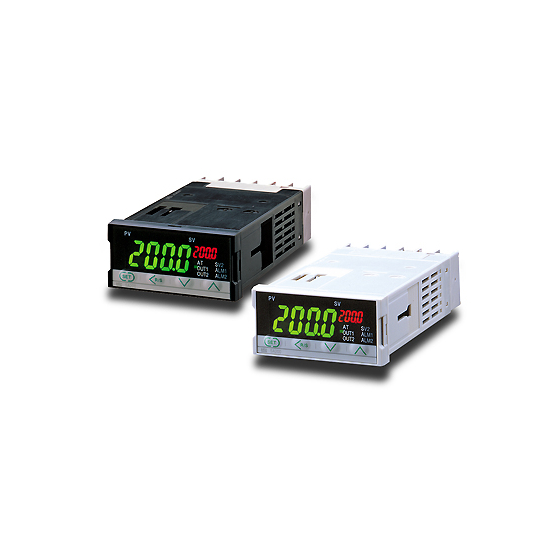

A compact temperature controller with a size of 48 (width) × 24 (height) mm. A small controller that can be installed even on narrow mounting surfaces. Despite its small size, it features a large PV display for good visibility.
Measurement accuracy: ±0.3% of displayed value Sampling period: 0.5 seconds / 0.25 seconds LCD display Size: 48×24mm (width × height) Plug-in structure e-CON connector connection type SA220 available
Inquire About This Product
basic information
Input Types Thermocouple, Resistance Temperature Detector, DC Voltage: DC 0-5V, DC 1-5V DC Current: DC 0-20mA, DC 4-20mA Sampling Period: 0.5 seconds (switchable to 0.25 seconds) Measurement Accuracy: ±(0.3% of displayed value + 1 digit) Output 1: Relay contact output, SSR drive voltage pulse output: DC 0/12V, continuous current output: DC 0-20mA, DC 4-20mA <Optional Specifications> Output 2 (Cooling side output for heating/cooling control, alarm output): Relay contact output, SSR drive voltage pulse: DC 0/12V Alarm Function (up to 2 points): Temperature alarm, control loop disconnection alarm External Contact Input (up to 2 points): RUN/STOP switch or SV1/SV2 switch *Alarm interlock release is also selectable Transmission Output: Measured value, set value, deviation, output value Communication Function: RS-485 <General Specifications> Power Supply Voltage: AC 100-240V / AC 24V / DC 24V Permissible Ambient Temperature: -10 to +55℃ Weight: Approximately 110g Safety Standards: UL, cUL, CE Marking, UKCA Marking, RCM
Price range
Delivery Time
Applications/Examples of results
Temperature control, heater control, can be used as a temperature alarm.
Detailed information
-
Size 48 (width) × 24 (height) mm
-
Outline dimension drawing
