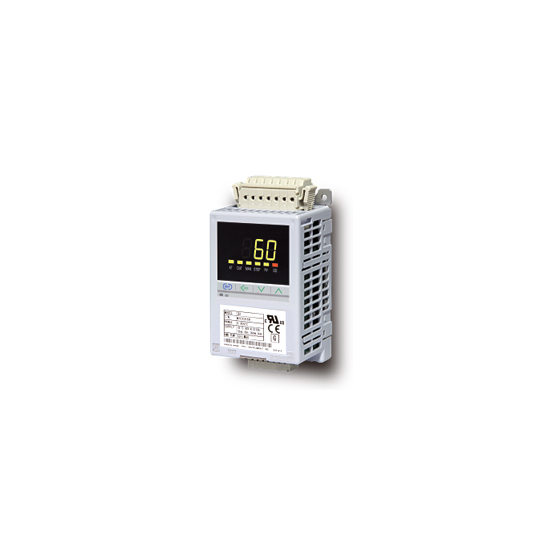

Built-in solid-state relay (SSR) in the temperature controller. Temperature control is possible by connecting the power supply, heater, and temperature sensor.
Built-in solid-state relay (SSR) with a maximum load of 7A. Directly connects to the heater, enabling compact temperature control with reduced wiring. Mounting options include DIN rail, pipe suspension, pipe wrapping, and wall mounting. Can also be installed in empty spaces and on the piping itself. Equipped with a loader communication port. Management of setting data is possible using the PROTEM2 support tool, which can be downloaded from our website for PC management.
Inquire About This Product
basic information
Main Specifications Input Points: 1 Input Types: Thermocouple K, J 0–800℃ Resistance Temperature Detector Pt100, JPt100 0–400℃ Sampling Cycle: 0.25 seconds Measurement Accuracy: ±(0.3% of displayed value + 1 digit) *Varies by input and range Output: Triac (SSR) output, zero-cross method, allowable load current 7A <Optional Specifications> Event Output: Relay contact, 1a contact capacity Event Function (up to 2 points): LBA function Digital Input (1 point): Select from SV1/SV2 switch, STOP/RUN switch, MAN/AUTO switch, interlock release Communication Function: Communication method RS-485 <General Specifications> Power Supply Voltage (Rated): AC100–240V Allowable Ambient Temperature: -10–60℃ Weight: Approximately 130g Safety Standards: UL UL61010-1 cUL CAN/CSA-22.2 NO.61010-1 CE Marking: Low Voltage Directive (LVD) EN61010-1 EMC Directive: EN61326-1
Price range
Delivery Time
Applications/Examples of results
Temperature control using heaters for piping, etc.
Detailed information
-
Built-in solid state relay (SSR) with a maximum load of 7A.
-
Installation is compatible with DIN rail, pipe hanging, pipe wrapping, and wall mounting.
-
Equipped with a loader communication port.
