One unit (module) can control the temperature at four points. Up to 16 temperature control modules can be connected in series. A maximum of 64 points of temperature control is possible.

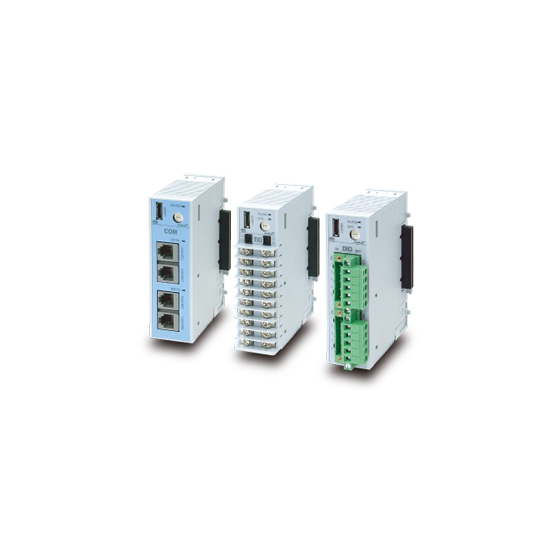

One unit (module) can control four points. When connecting each module, the power supply and communication lines are internally connected, eliminating the need for separate wiring for power and communication for each module, thus achieving reduced wiring. The inputs are universal inputs compatible with thermocouples, resistance temperature detectors, voltage, and current. The type of input can be specified for each channel, allowing for combinations of different inputs. Additional function modules are available besides temperature control. These include digital input/output modules (for operation mode switching, event output, etc.), communication expansion modules (for communication conversion and data management when connecting modules), and CT input modules (for heater disconnection alarm CT input and multi-point CT monitoring/overcurrent alarm). Various fieldbus communication converters can be connected, including Ethernet-based networks (MODBUS/TCP, EtherCAT, PROFINET), DeviceNet, and PROFIBUS.
Inquire About This Product
basic information
Temperature Control Module Number of Input Points: 4 points or 2 points Input Types (Universal Input): Thermocouple, Resistance Temperature Detector, DC Voltage, DC Current Sampling Cycle: 0.25 seconds Measurement Accuracy: ±(0.2% of displayed value + 1 digit) Output Relay Contacts, SSR Drive Voltage Pulse, Current, Voltage, SSR (Triac) Output, Open Collector Output Digital Input/Output Module Number of Input Points: 0 or 8 points Input Method: Voltage Contact Input, Sink Method Number of Output Points: 0 or 8 points Output Types: Relay Contact Output, Open Collector Output, Sink Method Current Detector Input Module Number of Input Points: 12 points Communication Expansion Module Number of Modules Connectable: Up to 16 modules of the same function, total connection up to 31 modules Communication Method: RS-485 / RS-422A Maximum Number of Connectable Units: 4 units <Common Specifications> Power Supply Voltage: DC24V Safety Standards: UL: UL61010-1, cUL: CAN/CSA-22.2 NO.61010-1 CE Marking: Low Voltage Directive (LVD): EN61010-1, EMC Directive: EN61326-1 RCM: EN55011
Price range
Delivery Time
Applications/Examples of results
Heater temperature control
Detailed information
-
Can be connected to Ethernet-based networks (MODBUS/TCP, EtherNet/IP, EtherCAT, Ethernet MAPMAN*).
-
Programless connection is possible with Mitsubishi Electric's MELSEC series PLC.
