Floor Level Survey | Visualizing Floor Issues Before Introducing Robots in Warehouses and Factories
Bed Accuracy Inspection Service
Before introducing AGVs, AMRs, and high-rise racks, we measure the floor's unevenness, undulations, irregularities, groove widths, and the condition of joint areas all at once. We can provide the report in as little as one day!

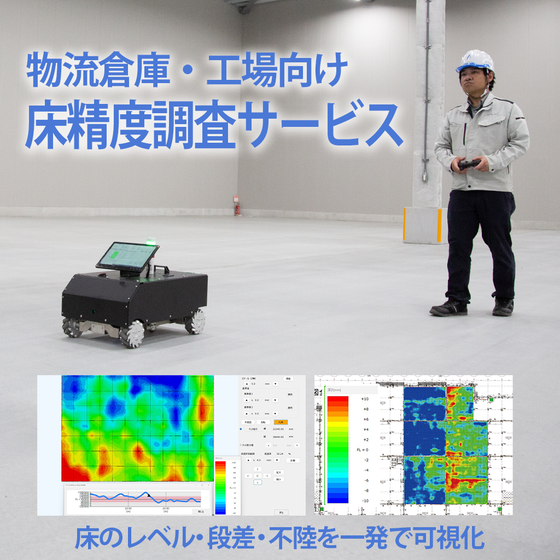

The floor accuracy survey service is designed to investigate whether the floor meets the running conditions for automated guided vehicles (AGVs, AMRs) in logistics warehouses and factories. Using a dedicated floor measuring device called a floor profiler, we measure the floor's unevenness, undulations, irregularities, groove widths, and the condition of joint areas all at once, visualizing the results in graphs and numerical data. After the measurement, we provide a floor report that includes: 01. Unevenness heat map 02. Detailed floor level sheet 03. Cross-sectional diagram of measurement lines These can serve as reference materials when considering floor renovations, as well as sales materials for tenants. According to JASS-5, the standard for floor level is ±7mm within 3 meters, but our floor accuracy survey service can measure with even higher precision standards. We can conduct surveys for both new and existing buildings, and we also accommodate measurements for transport pathways only. Additionally, if floor corrections are needed after the survey, we can handle various repairs such as step elimination work, unevenness correction work, and floor repair work according to the condition of the floor, so you can trust us to manage the entire process. Surveys can be conducted nationwide, so please contact Floor Agent for more information.
Inquire About This Product
basic information
The floor profiler used for floor accuracy surveys is a specialized floor measurement device that applies highway pavement measurement technology for use with concrete floors. Since it is a floor-contact type, it can measure without causing fluctuations in measurement accuracy due to the gloss or brightness of the floor surface, which were issues with methods like 3D laser scanning (point cloud data acquisition). After the survey, we will provide the floor report within as little as one day. For more details on the materials and the content of corrective work, please refer to the PDF at the bottom of the page or visit our company website.
Price information
It varies depending on the ticket difference range; for details, please contact the floor agent.
Delivery Time
P2
※Available 365 days a year, with next-day investigations and the ability to submit investigation materials as soon as one day after the investigation.
Applications/Examples of results
◇Floors in places where flatness and smoothness are required ◇Facilities and buildings that assume automation Logistics warehouses / Automated warehouses Various factories Data centers / Semiconductor factories / Sports facilities / Stadiums / Public facilities, etc. ◇Floor verification before equipment installation Automated guided vehicles (AGV, AMR, etc.) Automated racks (AS/RS, etc.) High-density racks (servers) etc. Warehouse floor unevenness resolution / Floor precision inspection / Floor measurement / Unevenness measurement / Running surface conditions / Floor level adjustment
