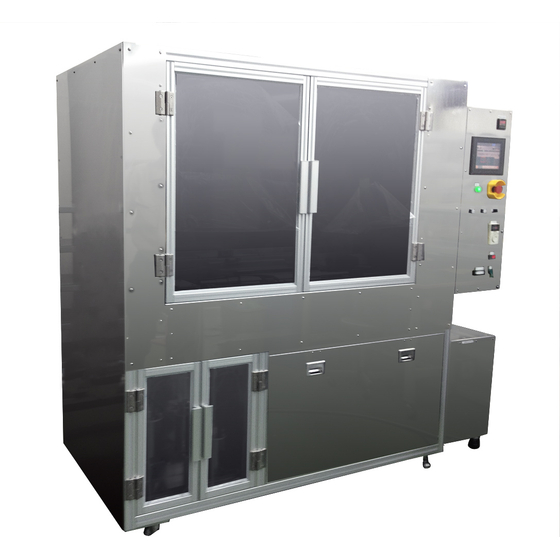

A coating device that applies a release agent to the roll material, followed by rinsing, cleaning, and drying processes to fix the release agent on the surface of the roll.
Compatible with roll materials up to 700mm in length and 7kg in weight. It enables uniform application of release agents through continuous processing, balancing productivity and precision. This device is suitable for a wide range of applications, from research to small lot production.
Inquire About This Product
basic information
【Main Specifications】 1. Target size: Roll with a total length of 700mm and weight under 7kg 2. Target materials: Metal, ceramic, resin, glass, etc. 3. Dip speed: Rotation speed: 1 to 30 rpm 4. Coating liquid circulation section: Yes 5. Coating liquid temperature control: No 6. Filter mesh: 0.2μm 7. Drying section: Yes 8. Drying temperature: Max 80℃ 9. HEPA unit: Yes 10. Equipment size (approximate): W: 1900 × D: 900 × H: 1995 mm
Price range
P6
Delivery Time
Applications/Examples of results
This is a device that applies a release agent to a roll-shaped mold, rinses and cleans it, and then performs a drying treatment to fix the release agent on the roll surface. The release agent and rinse solution are all supplied automatically.
Line up（18）
| Model number | overview |
|---|---|
| NIC-1106 | A tabletop model that achieves high-precision and stable release agent application for small substrates. |
| NIC-1103 | 6 to 8 inch board compatible, versatile medium-sized nano coater. |
| NIC-0809 | Optimal for φ200mm substrates, a nano coater that supports a wide range of research and development. |
| NIC-1109G | Box-integrated design that achieves high-precision coating in an inert gas environment. |
| NIC-1208 | High-power model compatible with 600mm square substrates, achieving uniform coating of large samples. |
| NIC-1410-S1 | High-precision dip coater for small cubic samples, compatible with thicknesses up to 1.5mm. |
| NIC-1308 | Dedicated nano coater compatible with roll materials, capable of continuous coating. |
| DT-1104 | A dedicated device for achieving uniform coating on disk media. |
| MD-1501-S1 | Dip coating device with a circulation mechanism that enhances liquid stability and has high chemical resistance. |
| SA-1109 | High-precision cleaning of substrates and samples is possible with ultrasonic cleaning. |
| SA-1202 | An efficient cleaning and drying integrated device that combines warm water drying. |
| NIC-1510 | A high-performance model that balances tank replacement and cleaning, accommodating multiple uses. |
| MD-1802 | High-efficiency model enabling multilayer film formation and continuous processing with an 8-slot configuration. |
| LD-1811 | Linear type that achieves oxidation prevention and stable film formation through nitrogen purge. |
| NIC-2003 | Supports a maximum stroke of 1.3m, an ideal model for handling large circuit boards. |
| DT-1812 | Ideal for continuous process handling, flexible support for various prototypes with an 8-tank system. |
| DT-2002 | Specialized dip coater for cylindrical materials, compatible with diameters of 20 to 60 mm. |
| NIC-2409 | Nano coater for large cylindrical materials compatible with Φ200 to 700mm sleeves. |
