Only when necessary, in the necessary place. Can be compactly stored with retractable outriggers.

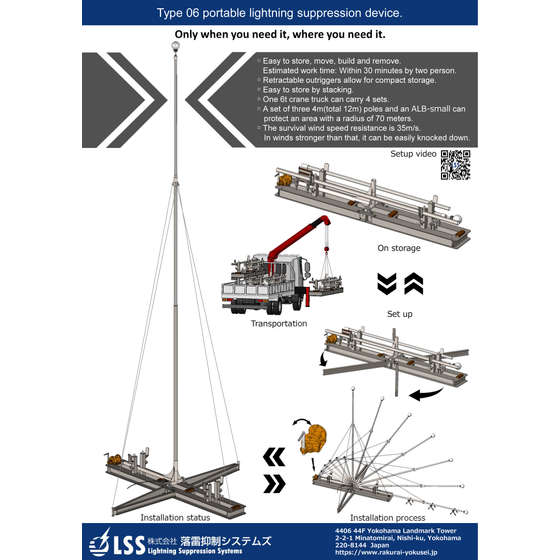

The "Type 06 Portable Lightning Suppression Device" is easy to store, move, erect, and dismantle, with an estimated working time of 30 minutes for two people. It can be stacked for space-saving storage, and a single 6-ton truck with a crane can transport four sets. It protects a radius of 70 meters with a set of three 12-meter poles and lightning balls. It is designed for use on concrete pavements at airports and airfields. To prevent uneven settling of the device, please solidify the ground if it is unpaved. 【Features】 - Easy to store, move, erect, and dismantle, with an estimated working time of 30 minutes for two people - Compact storage due to retractable outriggers - Can be stacked for space-saving storage - A single 6-ton truck with a crane can transport four sets - Protects a radius of 70 meters with a set of three 12-meter poles and lightning balls - Wind resistance is 35 m/s; it can be easily laid down in strong winds exceeding this speed *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Specifications】 ■Size - When set up: H12,000mm, L4,560mm, W4,560mm - When stored: H900mm, L4,560mm, W600mm ■Weight: Approximately 960kg ■Protection range: Radius of 70m ■Used PDCE: Small lightning ball *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
Not only PDCE. you may put TV cameras as well. Then you can monitor intrusion by suspicious person from 12m High position For more details, please download the PDF or feel free to contact us.
catalog（6）
Download All Catalogs
News about this product（1）
Company information
落雷抑制システムズ_ Lightning Suppression Systems.Co. 本社、関西支社
We are a company engaged in the development, manufacturing, and sales of lightning suppression devices. Our new type of lightning rod incorporates a function that makes it difficult for lightning to strike, contributing to the reduction of lightning damage. Our product, the PDCE lightning ball, which aims to prevent lightning strikes from the outset, has already been installed in 4,400 locations including the Self-Defense Forces, airports, railways, highways, broadcasting and communication facilities, chemical plants, ships, data centers, temples, outdoor sports facilities, schools, hospitals, condominiums, and single-family homes. - During the Tokyo Olympics and Paralympics, 85 units of our products were installed at 32 venues! - Out of 61 golf tournaments held domestically in 2024, 23 tournaments rented our products! - Introduced by 15 major private railway companies! All products are manufactured at the PDCE dedicated factory (Lightning Suppression Products Co., Ltd./Ibaraki Prefecture), which has obtained ISO 9001 JIS Q 9001 certification. We hold 120 intellectual properties mainly related to lightning strikes, both domestically and internationally. Toshio Matsumoto, founded the company in 2010. Specializing in lightning countermeasures for 15 years. While we cannot control the formation of thunderclouds, we can suppress lightning strikes to the ground!
