A versatile tabletop coater ideal for research and prototyping of medium-sized samples.

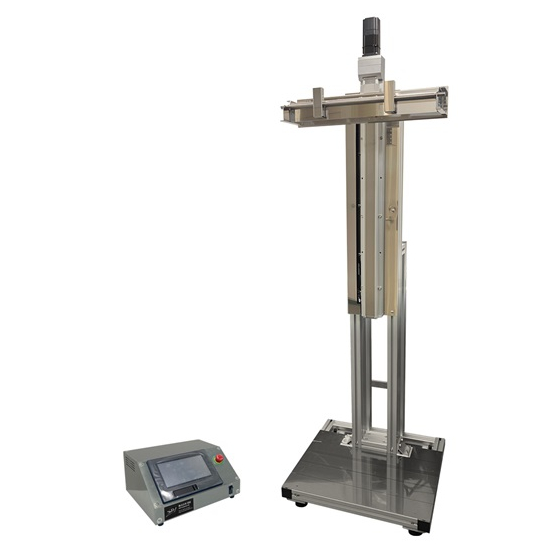

The medium-sized tabletop dip coater is a device that achieves a wide range of control with a stroke of 700mm and a minimum speed of 0.1mm/sec. It is suitable for coating large substrates and medium-sized samples, making it versatile for research and development as well as prototyping processes. Despite its compact size, it delivers high precision and uniformity, flexibly accommodating everything from laboratories to small-scale production lines.
Inquire About This Product
basic information
【Main Unit】 - Stroke: 700mm - Minimum Speed: 0.1mm/sec - Maximum Speed: 60mm/sec - Operation Method: Touch Panel - Screen Language: Japanese/English - Number of Processing Speed Designation Points: 8 points - Number of Stop Position Designation Points: 8 points - Number of Stop Time Designation Points: 8 points - Continuous Operation Mode: Yes - Manual Operation Mode: Yes - Number of Stored Programs: 2 programs - Monitoring Function: Current Speed: Yes - Monitoring Function: Current Position: Yes - Monitoring Function: Remaining Operation Time: Yes - Repetitive Operation: No - Standard Clip: SUS Material - Utility: AC100V, 250VA - Maximum Load Weight: 5kg - Maximum Processing Size: mm H:700mm - Linear Operation Mode: No - Device Size: Excluding Protrusions W:600 D:500 H:1899 (50kg) - Control Box Size: Excluding Protrusions W:300 D:285 H:163 (7kg)
Price range
P5
Delivery Time
※Please feel free to consult with us as it depends on the status of parts procurement.
Applications/Examples of results
In research institutions, it is used for the formation of test pieces for optical substrates and sensor components, while in industrial settings, it is utilized in the prototyping process of electronic components and functional films. It demonstrates strengths in variable size research and multi-variety prototyping.
Line up（7）
| Model number | overview |
|---|---|
| DT-0303-N1 | Space-saving, high-precision tabletop dip coater ideal for small samples. |
| MD-0408-N1 | A tabletop device ideal for precision coating of microstructure samples and small substrates. |
| LD-1304-S2 | A linear model that achieves highly reproducible film formation with stable lift and drop control. |
| DT-0001-N1 | Portable and lightweight coater that can be used in any research environment. |
| MD-1405-S1 | Pursuing surface precision to the limit, a high-precision device optimal for fine material research. |
| DT-1609-4D1 | Achieving complex shapes and multi-directional coating freely with 4-axis control. |
| DT-1303-S1 | Special dip coater for long materials and rod-shaped samples. |
