"Wide range of speeds and motion range, innovative dip coater" ++++++++++++ "Currently streaming videos on our website" ++++++++++++

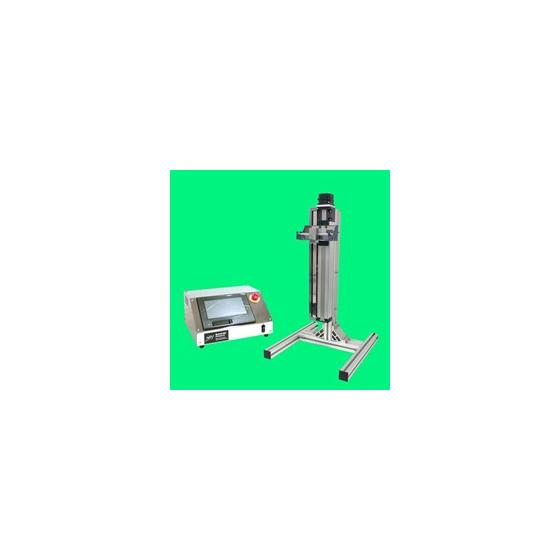

The innovative dip coater offers remarkable flexibility and performance. With a vast range of motion of 300mm and speeds from 0.1mm/second to 60mm/second, this equipment contributes to innovative coating and process control across a wide range of fields, including nanotechnology, semiconductor manufacturing, biomedicine, optics, and materials science. It opens up infinite possibilities for the synthesis of fine structures and nanomaterials, high-precision pattern formation, biocompatible coatings, enhancement of optical device performance, research on new materials, and even the development of catalysts. This dip coater enables a flexible and efficient manufacturing process, supporting the technological evolution towards the future. If you are leading the industry and pursuing innovation and productivity, this product is essential. A dip coater that can dip coat (dip coating) small-sized materials (under 300mm) such as glass, acrylic, copper foil, and tubular substances at millimeter-level speeds (variable at 0.1mm/sec). It is ideal for simple tests on a tabletop. The control panel allows for speed change points, speed adjustments, and the storage of operating patterns. *For more details, please download the catalog or contact us.
Inquire About This Product
basic information
【Main Specifications】 1. Stroke: 300mm 2. Minimum Speed: 0.1mm/sec 3. Maximum Speed: 60mm/sec 4. Operation Method: Touch Panel 5. Screen Language: Japanese/English 6. Number of Points for Speed Change: 8 Points 7. Number of Points for Stop Position Specification: 8 Points 8. Number of Points for Stop Time Specification: 8 Points 9. Continuous Operation Mode: Yes 10. Manual Operation Mode: Yes 11. Number of Stored Programs: 2 Programs 12. Monitor Function: Current Speed: Yes 13. Monitor Function: Current Position: Yes 14. Monitor Function: Remaining Operation Time: Yes 15. Repetitive Operation Function: No 16. Standard Clip: SUS Material 17. Utility: AC100V, 250VA 18. Portable Weight: 1kg 19. Maximum Processing Size: H:300mm 20. Linear Operation Mode: No 21. Device Size: Excluding Protrusions (Weight): W:430×D:480×H:815mm (11kg) 22. Control Box Size: Excluding Protrusions (Weight): W:300×D:285×H:163mm (7kg)
Price range
P4
Delivery Time
P4
Applications/Examples of results
The wide range of motion (300mm) and speed range (from 0.1mm/sec to 60mm/sec) of this dip coater make it suitable for many applications. 1. **Nanotechnology Research**: Coating at extremely low speeds enables the synthesis of nanomaterials and the development of nano-devices. It is a valuable tool for nanotechnology researchers. 2. **Semiconductor Manufacturing**: High-speed settings are used for fine pattern formation and thin-film coating. It contributes to high-efficiency processes in the semiconductor industry and promotes the development of new chips. 3. **Biomedical Research**: Suitable for biocompatible coatings on cell culture substrates and used for controlling tiny droplets. It provides a foundation for cell research and tissue engineering. 4. **Optics and Photonics**: Speed control is necessary for coating optical devices, lenses, and mirrors. It contributes to the development and manufacturing of high-precision optical instruments. This dip coater enhances the flexibility and efficiency of research, development, and manufacturing processes, leading to innovative outcomes in many fields. This equipment can be utilized to drive the evolution of future technologies and products.
Line up（1）
| Model number | overview |
|---|---|
| DT-0502-S3 |
