No installation work required! You can also choose mobile battery specifications and solar specifications as options.

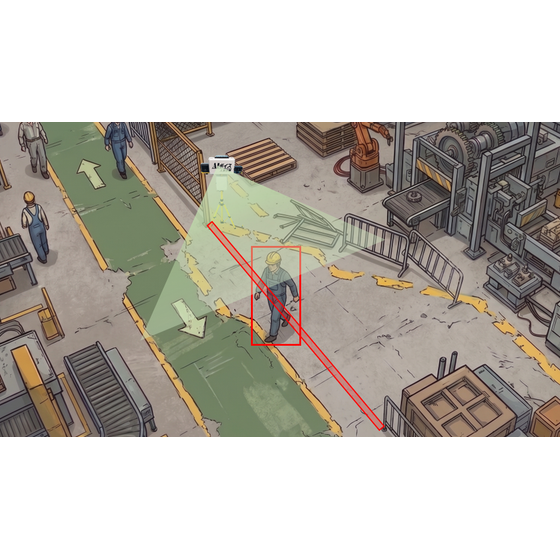

This is an innovative AI camera warning system that automates safety measures on-site. The high-performance AI camera automatically detects pedestrians and workers within designated areas and promptly alerts them to evacuate or be cautious using LED warning lights and audio speakers. Key Features and Benefits: ◇ Flexible Detection Area Settings: Detection distances range from 0.5m to 15m, with a maximum angle of 140°. It allows for flexible area construction tailored to the site, such as trapezoidal or rectangular shapes. ◇ Easy Setup via Smartphone: With Wi-Fi connectivity, settings can be intuitively changed from a smartphone or tablet browser without the need for an app. ◇ Excellent Outdoor Weather Resistance: The entire system is designed to be waterproof and dustproof with an IP65 rating (camera is IP69K), allowing for outdoor installation without the need for construction. ◇ Versatile Power Options: In addition to AC100V, it also supports cordless operation via a DC12V connector or mobile battery. ◇ Nighttime Capability (Optional): By selecting an infrared thermal camera, it can detect heat signatures up to 30m away even in complete darkness. This system contributes to thorough accident prevention as a new safety measure to replace the placement of guides. *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
Overall Power Specifications Power Configuration: Compatible with AC100V plug, DC12V connector, and mobile batteries, allowing for outdoor installation without the need for construction. Waterproof and Dustproof Standards: The entire system is designed for outdoor use equivalent to IP65 (monitor storage box: IP65, wiring box: IP65). AI Camera Specifications Resolution and Frame Rate: 1920×1080P, 25 or 30fps. Field of View and Detection Range: Horizontal field of view 140°. Detection distance ranges from a minimum of 0.5m to a maximum of 20m (maximum 12m when set to the maximum angle of 140°). High Durability Design: Operating temperature ranges from -20 to +70 degrees, vibration resistance of 5.9G, and boasts the highest waterproof standard of IP69K. Audio Alarm Speaker Specifications Rated Voltage and Tolerance Range: DC12–24V (tolerance range: DC10.8–26.4V). Sound Pressure and Volume Adjustment: Capable of producing a loud volume of over 87dB, with volume adjustable from Min to Max. Environmental Performance: Operating temperature range is -10 to +50 degrees, with a protection rating of IP54. Optional Features Thermal Camera: Capable of thermal detection and sensing up to 30m ahead in complete darkness through infrared detection.
Price information
For more details, please feel free to contact us via the "Contact Us About This Product" button. You can also reach out to us from here: https://www.joqr-bkc.co.jp/contact_media.php
Price range
P3
Delivery Time
※Prices may vary depending on options, so please contact us.
Applications/Examples of results
To prevent contact accidents between heavy machinery or vehicles and pedestrians or workers, the main installation scenes are as follows: 1. Safety measures at construction sites In areas where construction vehicles and heavy machinery frequently move, installations are placed in restricted areas and blind spots of the machinery. When pedestrians or workers enter dangerous areas, AI cameras automatically detect them and prompt evacuation with loud audio alerts. This takes over the role of human supervisors and guides that previously relied on human observation. 2. Separation of people and vehicles in factories and logistics warehouses This system is introduced in factories and warehouses where the paths of transporting vehicles, such as forklifts and trucks, intersect with those of workers moving on foot. It helps prevent accidents caused by sudden appearances or carelessness. 3. Vigilance monitoring in dark places or at night (optional) In completely dark areas where lighting does not reach or at nighttime sites, infrared thermal cameras are utilized. With heat detection, pedestrians can be reliably detected up to 30 meters away, making it effective for ensuring security and safety during nighttime work or in material storage areas. Since installation work is unnecessary and it can operate anywhere by simply setting up a tripod and connecting to AC 100V or a mobile battery, it is ideal for short-term events or dynamic sites where conditions change daily.
Detailed information
-
Photo when using the stand
