Digital dip coating equipment for innovative fluidics of the future.

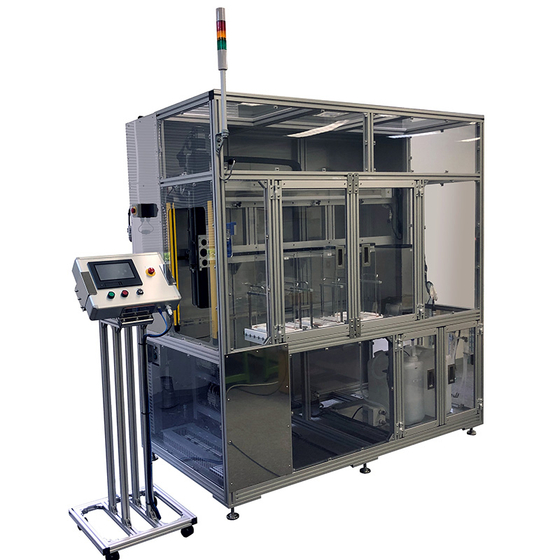

"Digital dip coater equipment for innovative future fluidics" Random dipping in three different acidic coating solution tanks. The pure water rinse tank features a device that repeatedly performs high-speed rinsing (up to 1000mm/sec). It accommodates substrates with a stroke of 480mm and dimensions of W180×H300mm. With high-speed lift control of up to 1000mm/sec, it enables efficient formation of multilayer films. Designed for mass production applications, it achieves significant throughput improvements.
Inquire About This Product
basic information
【Main Specifications】 1. Stroke: 480mm 2. Target Size: W:180×H:300 3. Target Material: Lens, Glass Plate 4. Dip Speed: 0.1–1000mm/sec 5. Rinse Liquid Supply: Yes 6. Coating Liquid Temperature Control: No 7. Filter Mesh: No 8. Drying Section: No 9. Drying Temperature: No 10. HEPA Unit: No 11. Device Size (Approximate): W:1900×D:1000×H:2000mm
Price range
P7
Delivery Time
Applications/Examples of results
The equipment for dip coating digital microfluidics application solutions provides innovative solutions across a wide range of implementations. For example, 1. In biomedical research, it is utilized for the processing of tiny biomaterials and the manufacturing of micro biosensors. 2. In the electronics industry, it assists in the protection of electronic components and the fine application of conductive materials. 3. Furthermore, in the field of materials science, it enables uniform and precise coatings in catalyst development and sensor technology. It is also applied in the manufacturing of microfluidic devices, allowing for the efficient creation of lab-on-a-chip and microfluidic devices. In the energy sector, it contributes to the performance enhancement of fuel cells and solar cells, aiding in the efficiency of energy conversion devices. Overall, this equipment offers innovative methods for liquid handling and coating at a micro scale, streamlining research, development, and manufacturing processes across various fields and opening up new possibilities. It is used for optical multilayer films and electronic component coatings, introduced into mass production processes in factories, contributing to efficiency through high-speed processing.
Line up（10）
| Model number | overview |
|---|---|
| HC-1004 | Uniform application of hard coating material achieves excellent durability in film formation. |
| FA-0406 | Achieving precise resist coating on large-area substrates with fully automated control. |
| SA-1210 | Forming a uniform protective film with dedicated design for printed circuit boards. |
| SA-1407-S1 | Supports 2-inch wafer compatibility and precise photolithography processes. |
| SA-1503-S1 | A semi-automatic device that balances operability and precision, with excellent versatility. |
| SA-1509UL | UL-certified device equipped with a rotary mechanism capable of uniformly processing complex shapes. |
| SA-1712 | Achieving high-precision coating while minimizing liquid usage. |
| SA-1801 | Achieving high-precision processing by cleaning the surface of glass materials with ultrasonic cleaning. |
| SA-2203 | 4-inch wafer compatible, high-precision photoresist dip coater |
| SA-2210 | Mass production equipment that streamlines multilayer film formation with high-speed processing at 1000mm/sec. |
