A form that uses the water pipe itself as a girder to correspond to the acting load! There are many achievements as a water pipe bridge.

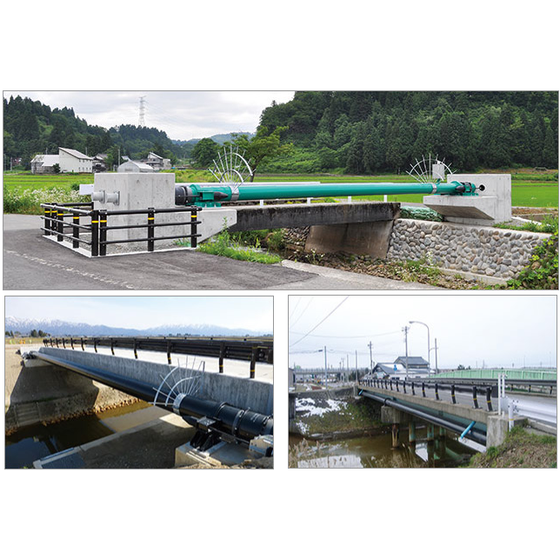

We would like to introduce our company's pipe beam type "water pipe bridge." It can be broadly categorized into four types: simple support type, one end fixed and the other end free support type, both ends fixed type, and continuous support type. This design effectively utilizes the toughness of steel pipes, allowing the water pipe itself to act as a beam to accommodate the applied loads, and it has a proven track record as a water pipe bridge. 【Lineup】 ■ Simple support type ■ One end fixed and the other end free support type *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
basic information
【Project Achievements】 ■ Type: Simple supported pipe beam ・ Diameter: 350A ・ Span length: 10.4m ■ Type: Simple supported pipe beam ・ Diameter: 600A ・ Span length: 21.5m ■ Type: Continuous supported pipe beam with two spans ・ Diameter: 450A ・ Span length: 17.70m + 18.10m *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Mizushima Iron Works Co., Ltd. is engaged in the design, manufacturing, installation, and maintenance of various structures, including water pipe bridges. To respond accurately and swiftly to our customers' needs, we are enhancing the technical skills of our staff and expanding and strengthening our headquarters factory. We are not only improving our corporate capabilities but also ensuring excellent quality and efficiency in our products through precise process management and quality assurance based on the international standard ISO 9001.
