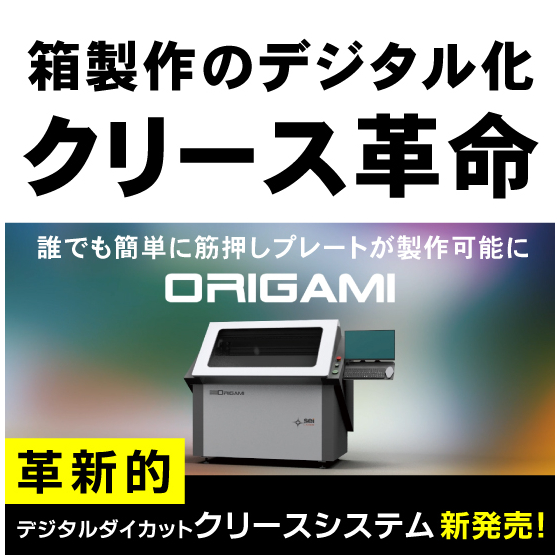

The crease revolution in cardboard packaging production! A new product, the Digital Die-Cut Crease System ORIGAMI, allows anyone to easily create crease plates.
The Crease Revolution in Cardboard Package Production! Anyone can easily create crease plates! The digital die-cut crease system 'ORIGAMI' has arrived! 'PAPER ONE' is a system suitable for digital compounding and finishing of sheet materials. It allows for creasing from either the front or back according to the specifications of graphics and designs. 【Features of ORIGAMI】 ■ Anyone can easily create crease plates just by importing the package layout data. ■ It operates offline, allowing for production without stopping the die-cutting and creasing processes on the laser machine. ■ Creasing is possible with a mix of mountain and valley folds. 【Features of PAPER ONE】 ■ It can sandwich with both male and female plates to perform creasing simultaneously. ■ A wide variety of laser cutting options are available, including full cuts, perforated cuts, and half cuts. ★ Please check the demo video for a complete overview of 'ORIGAMI' and 'PAPER ONE' ★ *For product specifications, please refer to the PDF document or feel free to contact us.*
Inquire About This Product
basic information
■ORIGAMI Specifications Power Supply: Single-phase 230V, 50/60 Hz Power Consumption: 500W Dimensions (mm): L 2166, W 1191, H 1497 Weight (kg): 560 ■PAPER ONE 5000 Specifications Sheet Size (mm): Minimum: 420×297 – Maximum: 750×530 Sheet Thickness (mm): Minimum: 0.15 – Maximum: 1 or more *Varies by paper type Sheet Format: Portrait Cutting Technology: CO2 sealed cutting laser Laser Output (W): 300 - 500 - 800 Laser Unit: Single or Double Processing Speed (sheets/hour): Maximum: 2500 Transport Speed (m/min): Maximum: 40 Laser Processing Area (mm): Each head 500×500 Positioning Method: Sheet edge, print mark Compliance: CE compliant Settable Height (mm): Maximum: 800 Feeding System: Pallet 800×600×115 or wooden table Scoring Tool: Magnetic flexible plate *For specifications and detailed information on PAPER ONE 7000, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
Detailed information
-
【For Paperboard Packaging】 Digital Die-Cut Creasing System 【ORIGAMI】 【Features of ORIGAMI】 ■ Anyone can easily create a creasing plate just by importing the package layout data. ■ Operates offline, allowing for die-cutting and creasing on the laser machine without interruption. ■ Creasing is possible with a mix of mountain and valley folds. ★ Please check the demo video for an explanation of how "ORIGAMI" works ★
-
【Specifications of ORIGAMI】 Power Supply: Single-phase 230V, 50/60 Hz Power Consumption: 500W Dimensions (mm): L 2166, W 1191, H 1497 Weight (kg): 560 For detailed specifications, please refer to the PDF document or feel free to contact us.
-
【For Paper Packaging】 Sheet-to-sheet compatible laser processing machine 'PAPER ONE' 【Features of PAPER ONE】 ■ Sandwiching with both male and female plates allows for simultaneous creasing processing ■ Capable of a wide variety of laser cutting, including full cut, perforated cut, and half cut ★ Please check the demo video for the full details of 'PAPER ONE' ★
-
【PAPER ONE 5000 Specifications Information】 Sheet Size (mm): Minimum: 420×297 – Maximum: 750×530 Sheet Thickness (mm): Minimum: 0.15 – Maximum: 1 or more *Varies by paper type Sheet Format: Portrait Cutting Technology: CO2 sealed laser Laser Output (W): 300 - 500 - 800 Laser Unit: Single or Double Processing Speed (sheets/hour): Maximum: 2500 Transport Speed (m/min): Maximum: 40 Laser Processing Area (mm): Each head 500×500 Positioning Method: Sheet edge, print mark Compliance: CE compliant Settable Height (mm): Maximum: 800 Feeding System: Palette 800×600×115 or wooden table Scoring Tool: Magnetic flexible plate *For specifications and detailed information on PAPER ONE 7000, please refer to the PDF document or feel free to contact us.
-
Processing examples of "ORIGAMI" and "PAPER ONE"
