Drainage of the agricultural pond is implemented inexpensively using siphon drainage! Achieving a drainage rate of 2m³ per minute with a φ100mm device!
A company that was considering lowering the water level in a reservoir in Iga City, Mie Prefecture, contacted us regarding the hybrid Yamata siphon. Considering the local conditions, we installed a φ100mm siphon drainage system. Through siphon drainage, we were able to lower the water level of the reservoir, which is 100m wide and 100m deep, by 20cm per day. The site was inaccessible to large machinery, so transportation and installation were carried out using a small all-terrain transport vehicle and seven workers. Additionally, due to the difficulty of transporting a 4-inch submersible pump and a three-phase generator for starting the siphon, we used three 2-inch submersible pumps and a portable generator that could be carried by hand to initiate the siphon. With a 100m extension of the piping and a height difference of 10m between the water level in the reservoir and the discharge outlet, we achieved a drainage rate of 2m³ per minute with zero fuel consumption through siphon drainage. This drainage rate of 2m³ per minute was comparable to that of a φ150mm submersible pump powered by electricity.
Inquire About This Product
basic information
Pipe diameter φ100mm Length L=100m Drop H=10m
Price information
The price varies depending on the quantity, so please feel free to contact us.
Delivery Time
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
Product introduction page
Detailed information
-
Material transportation status Transportation is being carried out using small illegal transportation vehicles and manual labor.
-
Piping condition: A suction hose with dedicated components is installed along the embankment of the reservoir.
-
Piping conditions for the reservoir The installation of hoses to the reservoir will be carried out using boats and other equipment.
-

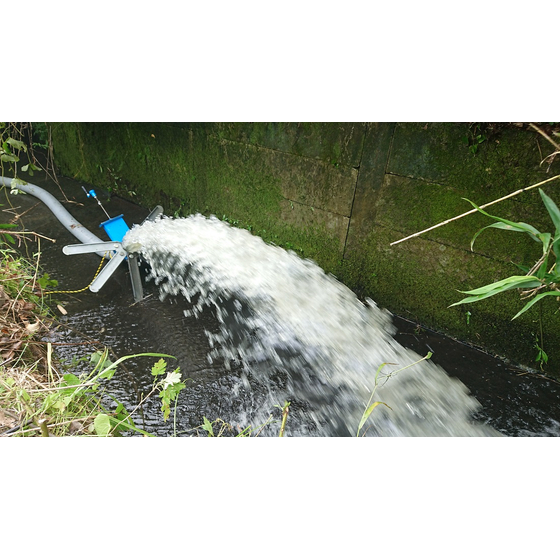

Drainage situation by siphon At this site, a siphon drainage of 2m³ per minute has been confirmed.
