For the decrease in water level of the agricultural pond! A siphon drainage system with zero fuel costs!
Developed a siphon drainage system that allows for zero fuel costs and can be manually transported to prevent water level decline and dam failure! Drainage using the principle of siphoning can be easily activated!
This is a device that easily initiates drainage due to a decrease in water level in places with elevation differences, such as agricultural ponds, using a suction hose and dedicated components. Because it operates on the principle of siphoning, fuel costs are nearly zero. This allows for significant cost reductions in fuel expenses, and it also reduces the hassle of refueling. The device with a diameter of 100mm can be transported manually and can be installed in locations where heavy machinery cannot access. The greater the elevation difference, the more drainage capacity increases; in practice, the 100mm device has recorded drainage rates of over 2m³ per minute. This is roughly equivalent to the drainage volume achieved using conventional 150mm submersible pumps powered by electricity.
Inquire About This Product
basic information
For drainage based on the principle of siphoning, it is a condition that the installation position of the drainage outlet is lower than the water level of the reservoir. Additionally, it is also a condition that the height of the top of the dam, which is the highest point of the piping relative to the water level of the reservoir, is 7 meters or less. The discharge amount varies depending on the length of the piping and the difference in height between the water level of the reservoir and the height of the discharge outlet for siphon drainage, but as a rough guideline, a height difference of 4 meters or more is desirable. The installation of the device depends on the conditions of the installation site, but for a piping extension of 100 meters, it can be installed in about half a day by a team of five people. The suction hose with dedicated connection fittings is available for purchase, while other dedicated components are available for rent. Please feel free to contact us for estimates and other inquiries. To initiate the siphon, a submersible pump, generator, etc., will be used for the first few minutes. We kindly ask you to prepare the generator and submersible pump.
Price information
The price may vary depending on the quantity and the length of the piping, so please feel free to contact us.
Delivery Time
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
- Fresh valley water was supplied to the fish tank of a ryotei (traditional Japanese restaurant) near the construction site through siphon drainage. This supply was maintained for about seven months without using any fuel, achieving significant cost reductions. - In a construction project at a reservoir in Mie Prefecture, this device was adopted due to the lowering water level of the reservoir. Since the site was inaccessible to heavy machinery, materials were transported using a small all-terrain vehicle and manual labor for installation. The site conditions were favorable for siphon drainage, resulting in a pipe extension of 100 meters and a drop of 11 meters, measuring a drainage rate of 2.1 m³ per minute, achieving water level reduction at a low cost. - This device was adopted at a reservoir in Kyoto Prefecture due to the lowering water level. Installation was carried out using a small backhoe and manual labor. With a pipe extension of 80 meters and a drop of 10 meters, a drainage rate of 1.7 m³ per minute was achieved, resulting in water level reduction at a low cost.
Detailed information
-
Material transportation status: Even in areas where large heavy machinery cannot enter, small unauthorized transport vehicles and manual transportation are being used.
-
Human-powered transportation and installation status: The situation involves the installation of suction hoses with dedicated components.
-
Status of pond installation The siphon intake pipe is installed in the pond.
-

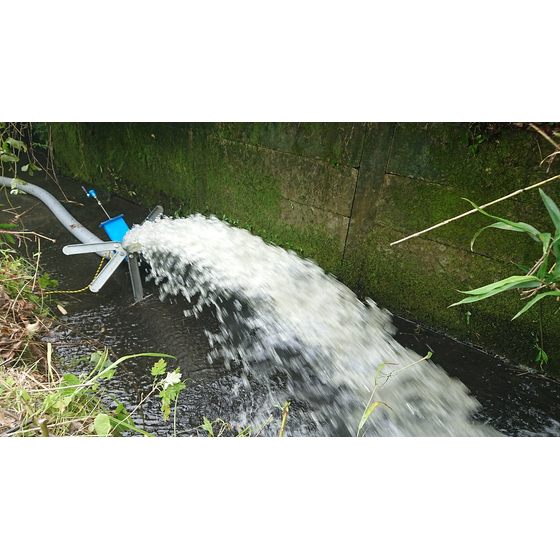

Drainage situation At this site, a drainage flow of 2.1 m³ per minute has been confirmed with a drop of 11 meters and a pipe length of 100 meters.
