Adopting a small tank system with approximately 1/3 the liquid volume (compared to our conventional machines) has successfully achieved significant cost reductions.

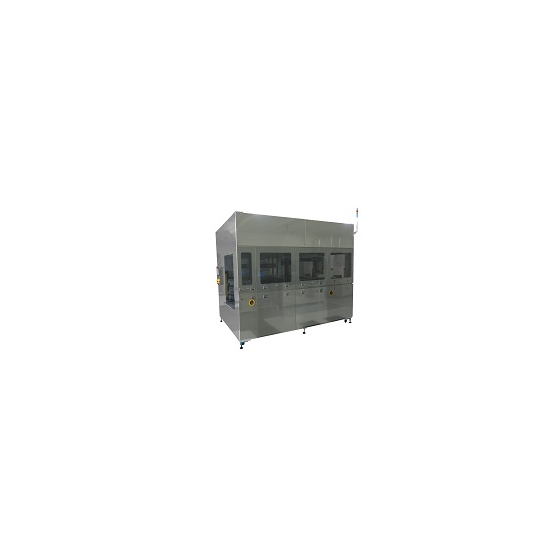

This device is designed for dip-coating thin glass sheets with a fluorine-based coating solution and then drying them with warm air. - It adopts a small tank system that uses approximately 1/3 the amount of coating solution compared to our conventional machines, achieving significant cost reduction. - It is equipped with vibration dampers and an anti-vibration table to address micro-vibration issues. - It is compatible with clean room environments. It accommodates substrates with a stroke of 680mm, dimensions of W515×H404mm, and thicknesses of 1.0 to 1.4mm. The device efficiently uses the coating solution, balancing cost reduction with high-precision coating. Its environmentally friendly design supports productivity and sustainability.
Inquire About This Product
basic information
【Main Specifications】 1. Stroke: 680mm 2. Target Size: W:515×H:404mm t1.0～1.4 3. Target Material: Glass plate 4. Dip Speed: 0.1～60mm/sec 5. Coating Liquid Circulation: Yes 6. Coating Liquid Temperature Control: No 7. Filter Mesh: Yes 8. Drying Section: Yes 9. Drying Temperature: 120℃ 10. HEPA Unit: Yes 11. Device Size (Approximate): W:3644×D:1932×H:2537mm
Price range
P7
Delivery Time
Applications/Examples of results
This device is designed for dip coating thin glass sheets with a fluorine-based coating solution and then drying them with warm air. - It adopts a small tank system with approximately 1/3 the amount of coating solution compared to our conventional machines, achieving significant cost reduction. - It is equipped with vibration dampers and an anti-vibration table to address micro-vibration issues. - It is suitable for clean room environments. It can be utilized for cost reduction in mass production processes and for environmentally friendly applications. In research applications, it has been introduced for tests that minimize the amount of liquid used.
Line up（10）
| Model number | overview |
|---|---|
| HC-1004 | Uniform application of hard coating material achieves excellent durability in film formation. |
| FA-0406 | Achieving precise resist coating on large-area substrates with fully automated control. |
| SA-1210 | Forming a uniform protective film with dedicated design for printed circuit boards. |
| SA-1407-S1 | Supports 2-inch wafer compatibility and precise photolithography processes. |
| SA-1503-S1 | A semi-automatic device that balances operability and precision, excelling in versatility. |
| SA-1509UL | UL-certified device equipped with a rotating mechanism capable of uniformly processing complex shapes. |
| SA-1712 | Achieving high-precision coating while minimizing liquid usage. |
| SA-1801 | Achieving high-precision processing by cleaning the surface of glass materials with ultrasonic cleaning. |
| SA-2203 | 4-inch wafer compatible, high-precision photoresist dip coater |
| SA-2210 | Mass production equipment that streamlines multilayer film formation with high-speed processing at 1000mm/sec. |
