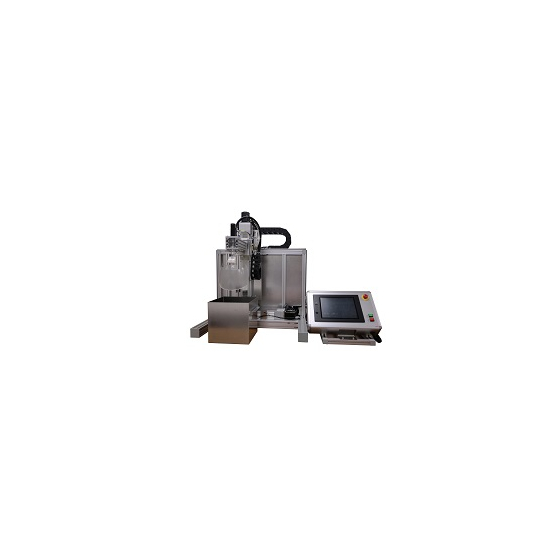

A dip coater with 4-axis control (elevation, lateral movement, rotation, and self-rotation). Capable of handling coatings of all shapes. This is a completely new dip coater.
A new type of dip coater that not only applies to conventional flat surfaces but also to complex shapes with curves and protrusions, such as glass, acrylic, and polycarbonate materials, utilizing not only lifting but also turning and rotating mechanisms to follow the application liquid to the target object. Of course, each axis can also operate independently. (The tank, coated items, and gripping parts shown in the photos are all optional.)
Inquire About This Product
basic information
【Main Specifications】 1. Stroke: Z-axis: 300mm, X-axis: ±150mm 2. Minimum Speed: Elevation Axis: 0.1mm; Rotation Axis: 0.1 degree; Self-rotation: 1.0 degree/sec 3. Maximum Speed: Elevation Axis: 60mm; Rotation Axis: 10 degrees; Self-rotation: 30 degrees/sec 4. Operation Method: Touch Panel 5. Number of Processing Speed Change Points: 16 points 6. Number of Stop Position Designation Points: 16 points 7. Number of Stop Time Designation Points: 16 points 8. Number of Stored Programs: 8 programs 9. Monitor Function: Current Speed: Yes 10. Monitor Function: Current Position: Yes 11. Monitor Function: Remaining Operation Time: Yes 12. Repetitive Operation Function: No 13. Standard Clip: No 14. Utility: AC100V, 350VA 15. Portable Weight: 1kg 16. Maximum Processing Size: H: 250mm 17. Linear Operation Mode: No 18. Device Size: Excluding Protrusions (Weight): W: 810×D: 800×H: 900mm (30kg) 19. Control Box Size: Excluding Protrusions (Weight): W: 435×D: 85×H: 300mm (3kg)
Price range
Delivery Time
※60 days after the order is received
Applications/Examples of results
Not only conventional flat plates but also complex-shaped objects for coating, such as glass, acrylic, and polycarbonate materials with curves and protrusions. The tank, coated items, and gripping parts shown in the photos are all optional.
Line up（2）
| Model number | overview |
|---|---|
| LD-1304-S1 | A completely new dip coater (dip coating) that is optimal for linear speed changes. The variable speed ranges from 0.1mm/sec to 200mm/sec. |
| LD-1503-S1 | A dip coater that can dip coat (dip coating) objects with complex structures. The speed range is from 0.1mm/sec to 20mm/sec. With two-axis control of the lifting axis and the rotating axis, coating at an angle is possible. By changing the value of acceleration, the style of speed change can also be controlled. It is a completely new type of dip coater. |
