This is a μ-line / μ-square laser module that achieves uniform illumination in fine areas.

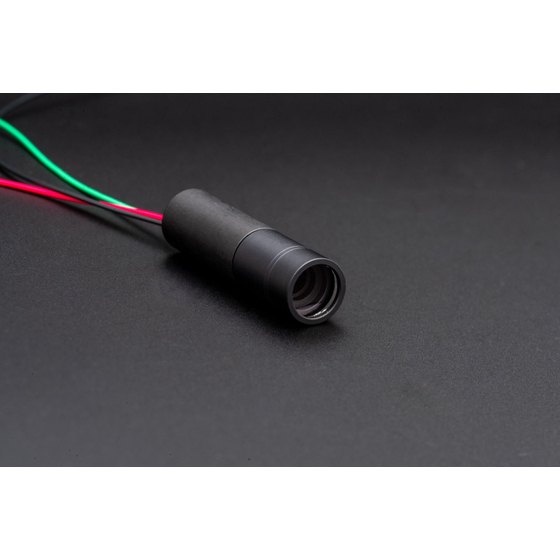

◆Micro Laser Module (μLINEMAN/μSQUAREMAN) Using a patented Micro Beam Shaper (MBS) in combination with multi-wavelength semiconductor lasers, it theoretically illuminates uniform lines and squares (rectangles) of light at a specified working distance. *The size of the lines and squares ranges from several tens of μm to several mm. Simulation results of the irradiation intensity across multiple wavelengths are available. Please check them out. Modules like this that use semiconductor lasers are unprecedented in the industry, and they are expected to have a wide range of applications in fields such as bioimaging, flow cytometry, laser processing, and marking. 【Features】 ■ Available in single-source type with a single wavelength light source and multi-source type with multi-wavelength light sources. ■ The size of μline/μsquare can be flexibly adjusted according to the focal length. ■ The wavelength (color) of the laser can be selected from ultraviolet to infrared. ■ Top-hat circles and rectangles can also be accommodated. *For more details about the product, please download the PDF document or feel free to contact us.
Inquire About This Product
basic information
Please download the laser materials.
Price information
-
Delivery Time
Applications/Examples of results
For more details, please contact us.
News about this product（1）
Company information
【Addressing These Concerns and Uses】 - I want to shape a Gaussian beam into a uniform top-hat profile. - I want to equalize and shape the intensity distribution of laser light. - Existing beam shapers do not meet the specifications. - I want to achieve uniform irradiation for laser processing and LLO. - I want to use lasers for inspection, measurement, 3D measurement, and machine vision. - I want to customize the optical system according to wavelength, beam diameter, working distance, etc. 【Ayase's Top-Hat Beam Shaper Technology】 This is an optical component and optical module that shapes Gaussian-distributed laser light into a top-hat profile suited for specific applications, equalizing the light intensity distribution in the irradiation area. We also accommodate the consideration and customization of optical systems according to usage conditions such as wavelength, incident beam diameter, output shape, working distance, and required uniformity. 【For More Information】 Ayase Web Page - View Top-Hat Beam Shaper Technology → Technology Page - View Applications → Application Page - View Top-Hat Beam Shaper Products → Product Page - For Custom Optics and Technical Inquiries → Custom/Inquiries Please feel free to consult us from the stage where specifications are not yet determined, as well as regarding the application of our optical systems.
