Pursuing line linearity! Generating an ideal top hat beam with uniform illuminance.

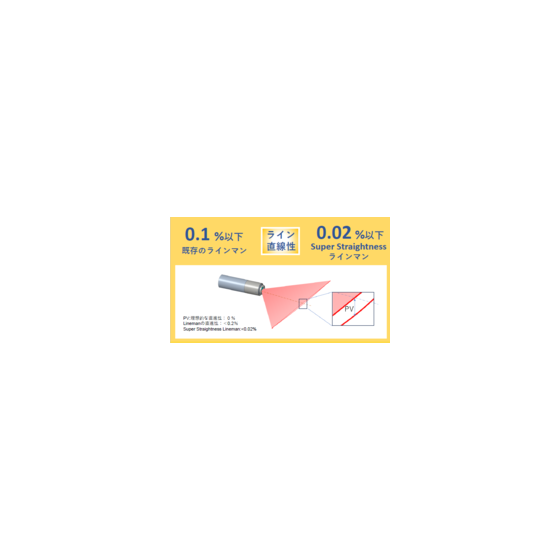

"Super Straightness LINEMAN" is a highly precise measurement line generator developed as a new addition to the LINEMAN series. In three-dimensional measurements using the optical slicing method, it achieves an extremely low linearity of 0.02% or less, improving upon the conventional standard of 0.1% or less. This minimizes errors during image processing to an extreme degree, enabling even higher precision measurements. Additionally, this product resolves the issue where line bending in three-dimensional measurements using the optical slicing method causes errors during software image correction, which can reduce measurement accuracy. 【Features】 ■ Generates an ideal top-hat beam with uniform illumination ■ Pursues line linearity ・From 0.1% or less to 0.02% or less *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
basic information
For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（2）
Download All Catalogs
Company information
【Addressing These Concerns and Uses】 - I want to shape a Gaussian beam into a uniform top-hat profile. - I want to equalize and shape the intensity distribution of laser light. - Existing beam shapers do not meet the specifications. - I want to achieve uniform irradiation for laser processing and LLO. - I want to use lasers for inspection, measurement, 3D measurement, and machine vision. - I want to customize the optical system according to wavelength, beam diameter, working distance, etc. 【Ayase's Top-Hat Beam Shaper Technology】 This is an optical component and optical module that shapes Gaussian-distributed laser light into a top-hat profile suited for specific applications, equalizing the light intensity distribution in the irradiation area. We also accommodate the consideration and customization of optical systems according to usage conditions such as wavelength, incident beam diameter, output shape, working distance, and required uniformity. 【For More Information】 Ayase Web Page - View Top-Hat Beam Shaper Technology → Technology Page - View Applications → Application Page - View Top-Hat Beam Shaper Products → Product Page - For Custom Optics and Technical Inquiries → Custom/Inquiries Please feel free to consult us from the stage where specifications are not yet determined, as well as regarding the application of our optical systems.
