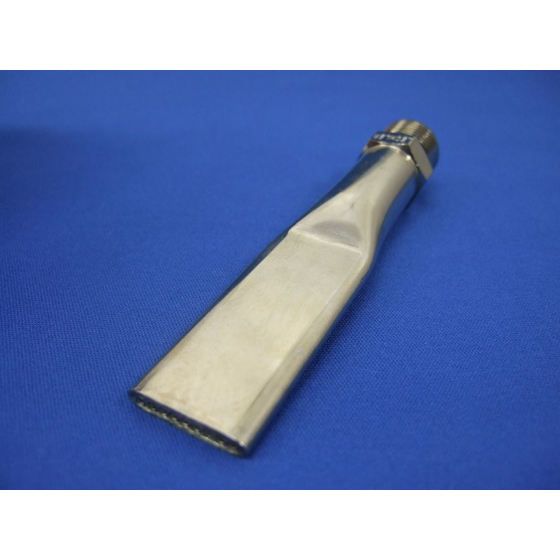

Multi-Channel Jet FL-600FK (Air Nozzle)

basic information

Material: Brass/PVC Impact Force: 2.3N @ 0.2MPa Noise Level: 77.5 dB (A) @ 0.2MPa Flow Rate: 15N?/h @ 0.2MPa Maximum Operating Pressure: 1MPa Heat Resistance: 50℃ *Please refer to the catalog for mounting screws, dimensions, and spray width. = Features = - Quiet operation (compared to semi-circular single-port nozzle (copper pipe and crushed): approximately 12 dB (A) reduction) - Low air consumption (approximately 30% reduction possible for the intended purpose) - Pressure loss within the air nozzle (approximately 6%) = Approval Standards = - OSHA (Occupational Safety and Health Administration [Noise])

Price information

-

Delivery Time

※Please contact each agency.

Applications/Examples of results

= Example of Use = ≪Removal≫ Removing chips and scrap after machining in the air blow chamber of the cleaning device, removing residual burrs, chips on machined reference surfaces, debris on surfaces before painting, and liquid drips from air knives, etc. ≪Cleaning≫ Blowing off metal surfaces from presses, die casting, machined reference surfaces, pallets, parts, and products; removing debris from surfaces before painting; cleaning plates before plating; cleaning trays of weighing instruments; and cleaning parts and plates with chemical solutions. ≪Air Blow≫ Leak tester sections, leveling release agents, drying, heating, cooling, and peeling. ≪Water Drainage, Cooling, and Others≫ After cleaning, before plating plates, equalizing the thickness of coating layers (using air knives, etc.), blowing off products, injecting air during packaging, cooling, and air curtains.

Line up（17）
