Ground Investigation | Uneven Ground Settlement Asset Preservation Analysis at the Site of a Demolished Wooden Apartment Building

Thoroughly analyze the settlement risk due to the uneven ground of the demolition site, firmly achieving the longevity of wooden apartments and the preservation of future asset value.

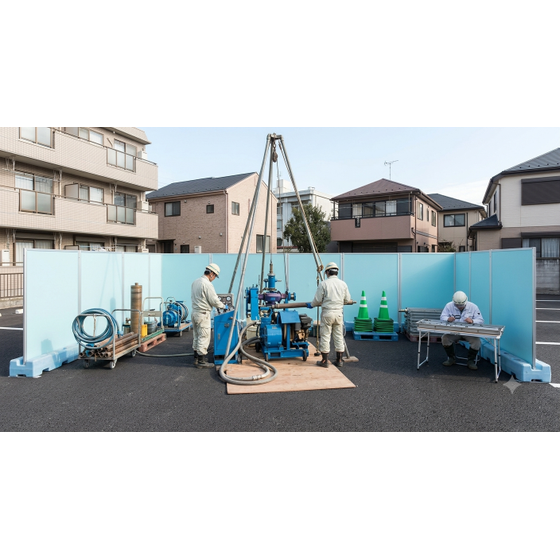

This technology is a high-precision ground diagnosis service that analyzes the risk of uneven ground settlement at the site of demolished wooden apartment buildings from multiple perspectives, ensuring the long-term structural safety and preservation of asset value of the buildings. At the site of the demolished old building, differences in the compaction of backfill soil and stratification can lead to differential settlement after new construction, posing risks of damage that can compromise asset value, such as distortion of the structure and unevenness of fittings. This method involves conducting screw weight penetration tests (SWS tests) at multiple points to precisely obtain and digitize penetration resistance values at various depths. By estimating the deformation angle (tilt of the building) from the strength differences between adjacent measurement points, we can predict the settlement behavior specific to uneven ground from multiple angles. Through rational reinforcement design based on the calculated data, we ensure the necessary load-bearing capacity for wooden apartments while preventing excessive improvements. By preemptively blocking future settlement accident risks and providing unwavering quality evidence to building owners and investors, we significantly contribute to the longevity of apartments and the maximization of business value.
