2-pole type, surface mount type

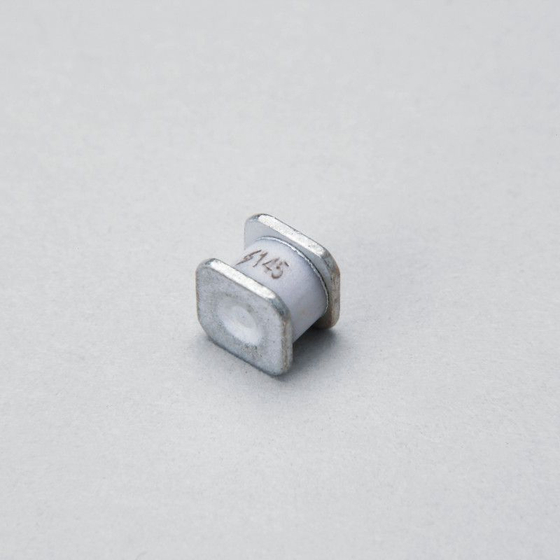

Surface mount type two-pole varistor (GDT) It is implemented in the internal circuits of communication devices and is used to protect equipment from induced voltages caused by communication lines and signal lines. This surface mount component achieves higher durability compared to the conventional SD4 type. It has the same external dimensions as the conventional SD4 series, and the substrate land pattern is common. Therefore, no redesign is necessary when switching to this product.
Inquire About This Product
basic information
- Extremely small with high current tolerance - Very low capacitance (below 0.5pF) - Broadband compatible - Excellent resistance to heat and mechanical shock due to the use of a ceramic enclosure - Superior tolerance to repeated surge currents and temperature environmental characteristics - Packaging method suitable for surface mounting with embossed taping - RoHS compliant - UL certified
Price range
Delivery Time
Applications/Examples of results
- Various electronic devices - Protection of communication lines - Exchange equipment - PBX (Private Branch Exchange) - Telephone - FAX
Line up（6）
| Model number | overview |
|---|---|
| SDH4-75 | DC discharge start voltage 75V |
| SDH4-90 | DC discharge starting voltage 90V |
| SDH4-145 | DC discharge starting voltage 145V |
| SDH4-200 | DC discharge starting voltage 200V |
| SDH4-230 | DC discharge starting voltage 230V |
| SDH4-350 | DC discharge starting voltage 350V |
