Count the aquaculture ponds as they are.
Regardless of the shape of the tank, the number of tails can be determined. In aquaculture, it is necessary to understand the number of tails in the tank for optimal feeding. However, due to the recent surge in feed costs, which can account for about 80% of production costs, accurately determining the number of tails has become an important issue for the aquaculture industry. This problem has been solved by AquaFusion's development of MagicCounterPlus. This technology, which further develops the real-time counting of tails during the separation process of the original MagicCounter, enables accurate counting of the number of tails in tanks of all shapes (Patent No. 7737767).
Inquire About This Product
basic information
<Transmission and Reception Unit> Transmission Frequency: 10-20 times/second Transmission Method/Wave Type: Short Pulse Transmission and Reception Channels: 12CH Detection Range: 0.5m-20m (for small cages), 0.7-50m (for large cages) Vertical Resolution: 10mm Target Fish Size: 1cm and above <Transmitter and Receiver> Dimensions: W 232 x D 271 x H 1637 mm Weight: Approximately 11kg Single Unit Specifications: W64×F65×H58mm Cable: FA Cable Φ12×5mm (Gray) <Main Unit> Waterproof Rating: IP65 External Dimensions: W 380 x D 362 x H 205 mm Weight: Approximately 8kg Operating Time: Maximum continuous 6 hours Battery Capacity: 12V 12Ah Lithium Iron Phosphate Battery Power Consumption: 23W Operating Temperature Range: 0 – 40℃ <Camera Section> *Fish Weight Measurement Camera is optional Waterproof Rating: IP65 External Dimensions: W65 x D79 x H131 mm Weight: Approximately 1.6kg Resolution: 2,048(H) x 1,536(V) Field of View: H90 degrees / V90 degrees *For other specifications, please inquire.
Price range
Delivery Time
※Please contact us for made-to-order production.
Applications/Examples of results
Scheduled for introduction to the Fisheries Research Institute in the Shikoku region in 2026.
Detailed information
-

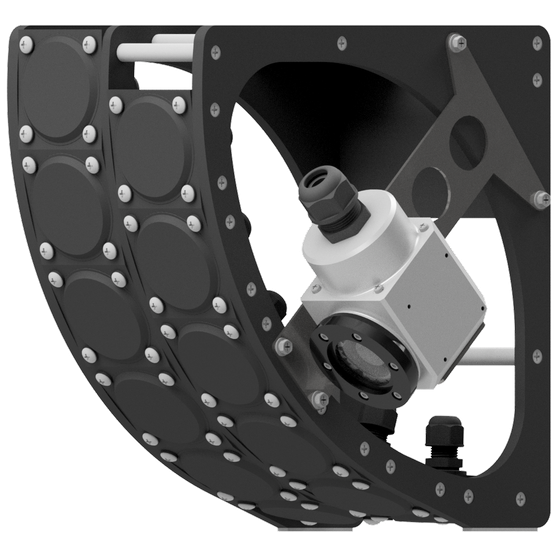

Our unique technology, FINE technology, incorporates multiple ultrasonic sensors into a sensor system that can rotate to cover the entire fish pen, allowing us to count the number of tails. By rotating, it becomes possible to scan and accurately measure the number of tails. This method of rotation allows for counting the number of tails regardless of the fish's movement, which is a key feature.
catalog（1）
Download All Catalogs
Company information
Our company is advancing the development of various underwater visualization devices, including a weighing fish school detector (fish body identifier) that can identify each individual fish, as well as fixed-point observation devices and measurement equipment for aquaculture. We mainly handle the underwater visualization device "AquaMagic series," providing high-value underwater information to our customers and contributing to the development of the fisheries industry (fishing and aquaculture), marine research, and marine development.
