Leave fluid density measurement to us! Full quantity measurement with piping installation! [NETIS registered]

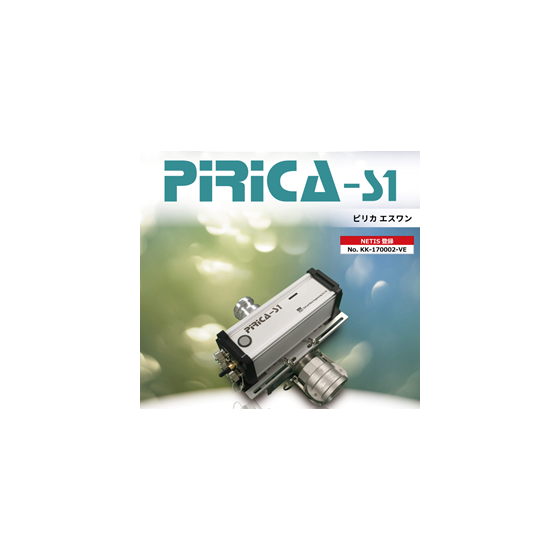

Piping RI Density Meter "PIRICA-S1"
The RI density meter "PIRICA-S1" measures the density of samples flowing through the piping in real-time, "non-destructively and non-contact."
The piping RI density meter "PIRICA-S1" is a measurement device that utilizes radioactive isotopes (RI) to continuously measure the density of substances (liquids, slurries, etc.) flowing within pipes in a non-destructive and non-contact manner. 【Features】 ■ Compatible with pipe diameters of 1 to 8 inches (*For pipe diameters of 10 to 16 inches, please consider the PIRICA-L1.) ■ Uses a sealed source of Barium-133 with an activity of 1MBq; no notification procedures to the Nuclear Regulation Authority are required ■ Installation on pipes can be done without tools unless special conditions apply ■ Mechanical specifications are designed for field use, featuring a waterproof and dustproof (IP65) structure ■ Measurement is possible without a 100V power supply using an internal rechargeable battery ■ Wireless remote measurement (up to 100m) is possible with Bluetooth Class 1 ■ Supports remote monitoring via internet connection (optional: SRENET) ■ In addition to the general-purpose PIRICA-S1, we also offer the battery-less, wireless external version PIRICA-S2 for factory equipment and the explosion-proof PIRICA-S3 (inquiries required) *For more details, please download the PDF or contact us.
Inquire About This Product
Related Videos
basic information
**Features** ■ Measurement Method - γ-ray transmission type ■ Source (sealed in stainless steel capsule) - Barium 133 1.0MBq ■ Measurement Pipe: 1 to 8-inch steel pipe, with measuring pipe included for pipes 3 inches or smaller with cam lock connections at both ends * Rubber hoses or flexible pipes with varying outer diameters are not applicable ■ Measurement Range: Density 1.000 to 2.000g/cm³ * By inputting the specific gravity of solids, it can be converted to concentration, W/C, unit water volume, etc. ■ Power Supply: Built-in lithium battery (or includes DC5V, 100V adapter) ■ Display/Recording: Measurement computer (included in rental items) ■ Communication: Bluetooth Class 1 ■ Main Unit Weight: 4.4kg ■ Main Unit Dimensions - Detection Unit: 85W × 279D × 92H (mm) - Complete Equipment: 126W × 279D × 223H (mm) * When installed for 2-inch piping (excluding piping) ■ Options: SRENET, warning lamp, analog input
Price range
Delivery Time
Applications/Examples of results
【Purpose】 ■ Management of slurry density for ground improvement methods using slurry mixing (quality control) ■ Management of PC grout materials ■ Quality control of improved soil in soil improvement equipment ■ Monitoring of excavated soil volume in shield tunnel construction (Note: a flow meter is required separately) ■ Technical proposals and creative ideas 【Examples of Achievements】 ■ Public works (projects ordered by the Ministry of Land, Infrastructure, Transport and Tourism and NEXCO) and others
