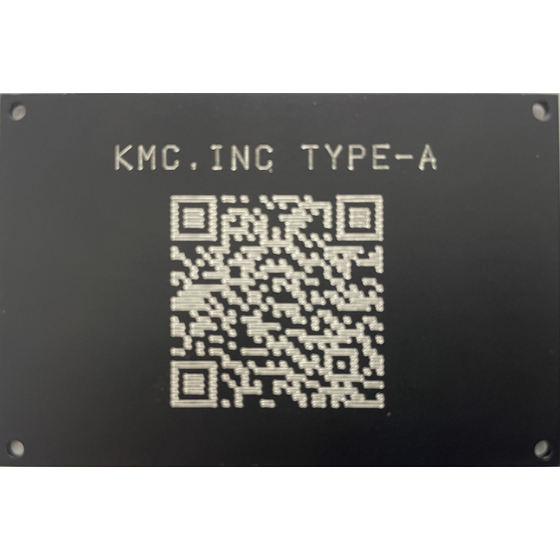

"QR nameplate" with a 20-year durability that ensures light resistance, corrosion resistance, wear resistance, and weather resistance.
Directly cut and engraved QR codes on aluminum plates, coated with a special glass coat! Ensured light resistance, corrosion resistance, wear resistance, and weather resistance, achieving a reading guarantee of about 20 years. Available in sizes A to D. 【Features】 ■ Centralized management of product information ■ Excellent durability ■ Various sizes available ■ Achieved low prices
Inquire About This Product
basic information
■Material: A5052 t1.5 ■Surface: Black anodized treatment (thickness over 10μm) directly engraved on aluminum plate, followed by special glass coating treatment (patent obtained) ■Size (mm) ・TYPE-A ... 50 x 75 x 1.5 ・TYPE-B ... 50 x 37.5 x 1.5 ・TYPE-C ... 25 x 37.5 x 1.5 ・TYPE-D ... 14 x 60 x 1.5 ■QR Code Capacity (alphanumeric only / binary only) ・TYPE-A ... 90 / 62 ・TYPE-B ... 90 / 62 ・TYPE-C ... 38 / 26 ・TYPE-D ... 25 / 17 ■Features ・Corrosion resistance: Strong against rust/oil/solvents ・Heat resistance: Up to 200℃ ・Wear resistance, light resistance, weather resistance
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Equipment management in oil-rich factory environments ■ Equipment management outdoors exposed to wind and rain ■ Tree and vegetation management ■ Management of containers, pallets, and transportation materials ■ Demonstrates capability in managing all kinds of entities!
Line up（4）
| Model number | overview |
|---|---|
| TYPE-A | 50 x 75 x t1.5 |
| TYPE-B | 50 x 37.5 x t1.5 |
| TYPE-C | 25 x 37.5 x t1.5 |
| TYPE-D | 14ｘ60 x t1.5 |
