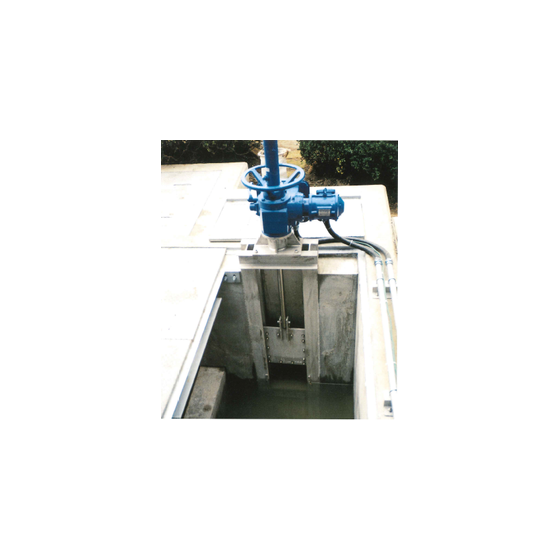

A high-precision gate system that monitors abnormal discharge of wastewater containing paints and solvents using pH meters, oil film detectors, turbidity meters, conductivity meters, etc., to prevent external contamination.
In printing and painting factories, the handling of wastewater from inks, paints, and solvents can have a significant environmental impact if abnormal discharges occur. This system continuously monitors pH, oil film, turbidity, and automatically closes the gate when exceeding standard values. With high water-stopping performance, it prevents the spread into drainage channels. Custom designs tailored to paint characteristics and line configurations are possible, and flexible integration with existing equipment is also supported. It helps achieve both environmental impact reduction and risk mitigation. 【Features】 - Strong structure against ink and paint leakage - Fully automated monitoring and blocking - Flexible customization to fit equipment - Optimal proposals based on installation track record *We also offer a diverse lineup of sluice gates tailored to various applications! For more details, please refer to the catalog or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■ Type: Stainless steel or steel sluice gate ■ Opening dimensions: 100×100 to 2000×2000 mm ■ Design water depth: Designed as per request ■ Operating water depth: Designed as per request ■ Water-tight method: Three-way or four-way rubber water-tight type ・Can stop water even at low water pressure using a tapered block ■ Opening and closing mechanism: Electric type (rack type or spindle type) ■ Control method: Designed as per request ・Interlocking with pH meter, oil level meter, rain gauge, etc., for cutoff operation via sensor signals ・Remote control ・On-site manual operation, etc. ■ Cutoff time: 300 mm/min (standard) 【Kanae Interesting Course】⇒ https://www.kanae.co.jp/about/gate.html ⇒ 'Technology for Preventing the Outflow of Harmful Substances' *For more details, please refer to the catalog or feel free to contact us. (Kanae: Sluice gate manufacturer)
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please refer to the catalog or feel free to contact us.
