Immediate detection and automatic reporting of flooding during nighttime and holidays! A reliable loop call prevents delays in initial response and protects lives.

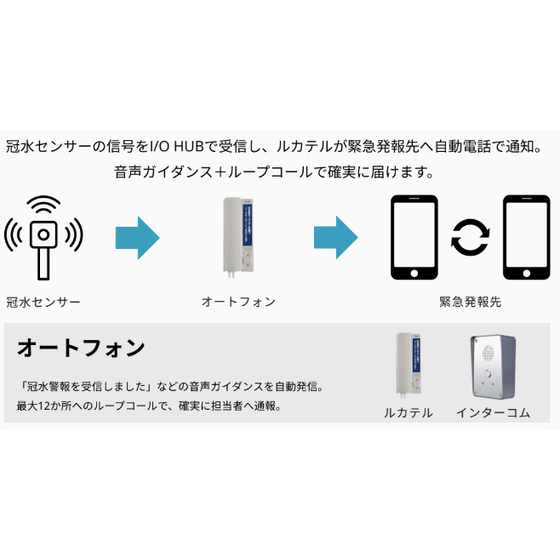

This system detects rapid flooding in underpasses and similar locations using sensors and immediately notifies the responsible personnel. The following features address the challenges of constant monitoring. ■ Automatic calling function linked to sensors When existing float sensors or electrode sensors detect a rise in water level, our I/O HUB activates an auto phone (Lucatel), which automatically dials the emergency contact. ■ Voice guidance notification function Once the call is connected, a voice guidance message such as "Flood warning received" is automatically played, accurately conveying the situation. ■ Loop call function to a maximum of 12 locations Even if the first contact does not respond, the system automatically forwards and repeatedly dials up to 12 phone numbers in sequence. These features significantly reduce the human cost of monitoring while ensuring reliable information transmission.
Inquire About This Product
basic information
●Basic Specifications Supported Carriers: NTT Docomo, KDDI, SoftBank (4G/LTE) Main Unit Size: 90mm(W) × 74mm(D) × 210(H) Operating Temperature: -25℃ to +70℃ Installation Method: Desktop installation/wall-mounted installation compatible Power Supply: AC power (no installation required) ●Functional Specifications Dialing Methods: Handset dialing, button dialing, hands-free dialing Incoming Call Features: Allow/deny settings, incoming call allowed number registration Voice Guidance: Operation instructions, automatic notification support Scheduling Function: Change of dialing destination based on time, day of the week, and date Loop Call: Supports forwarding to a maximum of 11 locations Automatic Response: Forced hands-free call transition ●Management Features Remote Management: Configuration changes, status monitoring, remote reboot I/O Functions: Device connection notifications (device failure notifications, emergency calls, etc.), remote operation support (opening and closing doors or gates, etc.) Status Display: LED signal level and usage status display Volume Adjustment: Speaker volume adjustment during calls Customization: Label color and content modification support *For more details, please download the PDF or feel free to contact us.*
Price information
For detailed pricing, please contact us. Additionally, a plastic box for outdoor installation and sensor wiring and installation costs will be required separately.
Price range
P2
Delivery Time
P3
※The delivery date may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
■Safety management of three-dimensional intersections and cut-and-cover roads (underpasses): A scene where arrangements for road closures are made quickly to prevent serious accidents where vehicles unknowingly enter and become submerged during rapid flooding caused by sudden heavy rain. ■Establishment of an unmanned monitoring system during late-night and holidays: Even during nights and holidays when constant monitoring by staff is difficult, the system automatically monitors for anomalies. In case of an emergency, it continues to call the responsible person until the call is connected, eliminating any gaps in response time. ■Initial response under conditions where visual confirmation is difficult due to bad weather: Even when it is dangerous or difficult to rush to the site or visually confirm due to storms, the system automatically notifies without waiting for reports from residents, allowing for safe and immediate initial response. 【Excerpt from specifications and introduction information】 Compatible sensors: Float sensors, electrode-type sensors, etc. (those that output contact signals)
Detailed information
-
■Issue At Company A, which operates coin parking, there was a serious problem where it took a long time for the call center to identify which parking lot the call was coming from during trouble incidents, leading to prolonged responses. Increased waiting times for users resulted in further dissatisfaction and complaints, along with a rise in customer harassment. Additionally, the introduction of remote opening and closing devices for gate-type parking lots was expensive, presenting cost-related challenges. ■Implementation Effects By inserting individual SIM cards into each device and registering the phone numbers in the call center's CTI/CRM system, it became possible to instantly identify which parking lot and which payment machine the call was coming from upon receiving a call. This significantly reduced response times, alleviating user stress and decreasing customer harassment. In gate-type parking lots, by directly connecting the device to the payment machine, it became possible to obtain signals for gate opening and closing operations and equipment malfunctions, such as ticket shortages, without introducing expensive remote devices.
-
■Issues At Regional Bank B, the decrease in ATM usage necessitated the urgent need to abolish ATMs and reduce operational costs. In particular, the existing emergency communication devices for ATMs that used wired connections had high monthly running costs and maintenance fees, leading to a decline in profitability. Additionally, relocating or abolishing ATMs incurred new telephone installation costs, increasing the risk of recovering capital investments. ■Implementation Effects By switching from existing wired connection devices to wireless direct-dial devices, we were able to significantly reduce monthly running costs. The installation was simple, requiring only plugging in the power, which minimized construction costs. During ATM relocations, new telephone installations were no longer necessary, allowing for handling with just the transportation of the equipment. Even during ATM abolishment, the low implementation and running costs greatly reduced the investment recovery risk compared to wired types.
