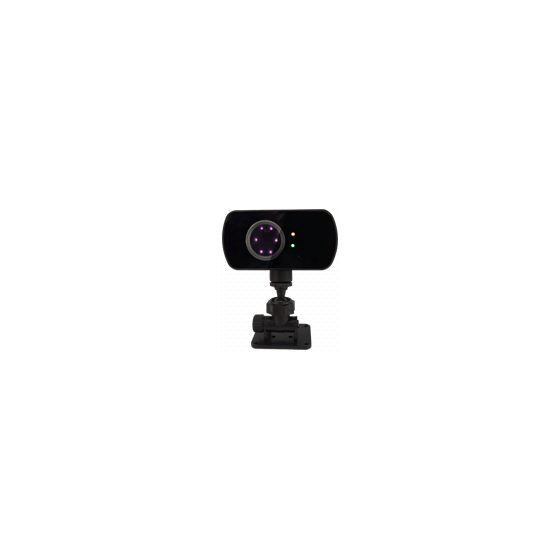

Don't miss out on drowsiness even with a mask on! | Tracking pupil and facial shape with AI facial recognition.
- Equipped with a high-precision AI facial recognition engine specialized for the rapidly changing in-vehicle environment. By using an active infrared method that does not rely on visible light, stable tracking is achieved even under conditions that are difficult for conventional cameras. ■ Technical Points - IR Sensing: Using infrared LEDs in the 850nm band and a dedicated filter, the main facial features can be accurately plotted even in direct sunlight or complete darkness. - Obstruction Handling: Detection logic that is not affected by the driver's attire, such as dark sunglasses, prescription glasses, wearing a mask, or wearing a hat at night. - Posture Correction: Analyzes the tilt of the head and the direction of gaze in 3D. Complex behaviors such as looking sideways or downward can also be accurately distinguished.
Inquire About This Product
basic information
CPU: ARM + AI DSP chip Power Consumption: 12-24V, 1mA, or 5V 1mA Audio: 1.5W speaker output Camera: 12-bit DVP camera interface Indicator: Power operation display, alarm display Connector: USB, cigarette plug, RS232, CVBS USB: 1 micro USB port for 5V input and app settings SD Card: Up to 128G Communication Protocol: RS232C (baud rate configurable), I/O output Video Output: CVBS compatible (external output to in-car monitors, etc.) Operating Temperature: -20℃ to 70℃ Operating Humidity: 20% to 90% (no condensation) Storage Temperature: -40 to 85℃ Storage Humidity: 10% - 95% (no condensation) Recording Medium: Continuous/event recording via SD card (up to 128GB) Detection Targets: Closed eyes, yawning, distraction, phone calls, smoking, unregistered, camera obstruction, etc.
Price range
P2
Delivery Time
P3
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
- Long-distance buses operating late at night - Highways with many tunnel sections - Environments in cold regions where significant changes in sunlight occur with the seasons, requiring environmental resilience * For more details, please refer to the PDF document or feel free to contact us.
