Introducing a case study that solved the layout and slope issues of drainage pipes during the installation of a new refrigerated showcase!
We would like to introduce a case where the "General Drainage NSB (ZA-100NSB+)" was adopted in conjunction with the expansion of the sales floor area during the supermarket store renewal. In this facility, there was a challenge of wanting to place a refrigerated showcase in a location where it had not been installed before, but due to the absence of a drainage pipe, it was necessary to pump the drainage. Based on our proposal, a cost-effective model specifically designed for drain drainage, featuring a backup function, was adopted for the refrigerated showcase. The piping route utilized the ceiling, with a discharge pipe raised 3 meters and run horizontally within the ceiling to the pipe shaft. 【Case Overview (Partial)】 ■ Installation Location: Supermarket ■ Model: General Drainage NSB (ZA-100NSB+) ■ Connected Equipment: Refrigerated Showcase Drainage *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information

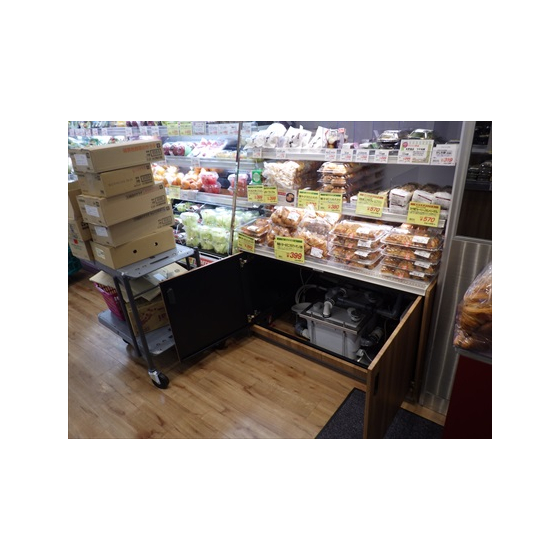

【Summary of Other Cases (Partial)】 ■Challenges <Requests> - With the store renovation for expanding the sales area, we want to place a refrigerated showcase in a location where it has not been installed before, but we need to pump out drainage as there are no drainage pipes. - Since it is a tenant inside the station, a backup system with two pumps is essential to avoid water leakage due to pump troubles. - It would be even better if it can be compactly installed and is inexpensive. ■Proposal Details <Key Points in Design and Construction> - The piping route will utilize the ceiling, with the discharge pipe raised 3 meters and run horizontally within the ceiling to the pipe shaft. - The installation location will be under the fixtures next to the refrigerated showcase. *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
