Rebooter to the new generation! Supports a more secure communication method! 4-outlet 19-inch half-type rebooter.

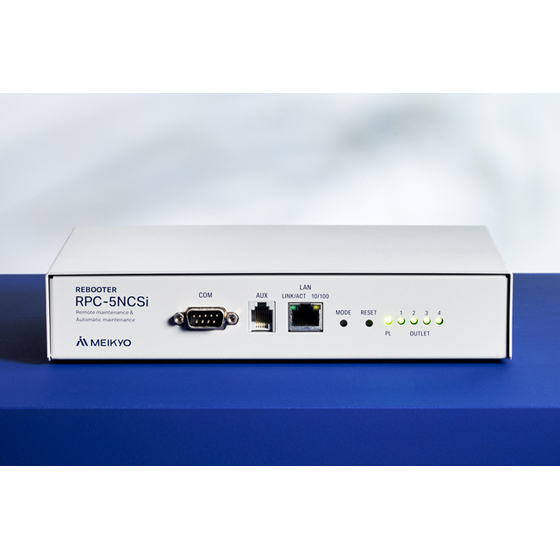

The "RPC-5NCSi" is a 19-inch half 1U type reboot device that can control 4 outlets. It has a shutdown script function, allowing for OS shutdown (Telnet/SSH) of PCs and servers. It automatically turns the power OFF/ON for devices that have lost PING responses or heartbeat, restoring them. 【Features】 ■ Automatically detects playback issues with a CPU analysis algorithm ■ Safely shuts down frozen STBs and automatically reboots the power ■ The display automatically turns OFF only during the STB reboot ■ Secure communication methods - SSH client/server functionality [OpenSSH 8.1p1] - SSL/TLS email transmission and reception [OpenSSL 1.0.2h] - Supports SNMPv3, enhancing security by encrypting communication while maintaining the functionality of previous models. ■ Notification features (email notifications and SNMPv1/V3 trap notifications) ■ Integration with cloud services for power control and status monitoring ■ Ideal for digital signage *For more details, please refer to the PDF materials or feel free to contact us.
Inquire About This Product
basic information
■Functional Specifications Display Function: Status display of the main power, outlets, and LAN using 7 LEDs Alive Monitoring Function: Determination by PING, heartbeat, and port monitoring. Power control linked to each. Temperature Monitoring Function: Measured every second. -10 to 70°C. Upper and lower limit threshold settings. Linked power control (ON/OFF) Power Control Function: Individual power control for 4 outlets (ON/OFF/REBOOT[※]) Status Notification Function: SNMP (v1, v3), E-mail, syslog, MPMP (Mikyo's proprietary method) WoL Function: Magic Packet output linked to power ON ■Hardware Specifications Outlets: 4 Maximum Control Output: 1500W (1500W for each outlet) Maximum Power Consumption: 4.7W Input Power Voltage: AC100V±10% (50/60Hz) Operating Environment: Temperature -10 to 50°C, Humidity 20 to 85% (no condensation) External Dimensions: 220 (W) × 42.6 (H) × 165 (D) mm [excluding rubber feet] Weight: 1.6kg Protection Circuit: Built-in glass tube fuse (15A), surge absorber (between lines, between line and ground)
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
