High-performance InSb detector with a cutoff at around 5.5 μm long wavelength.

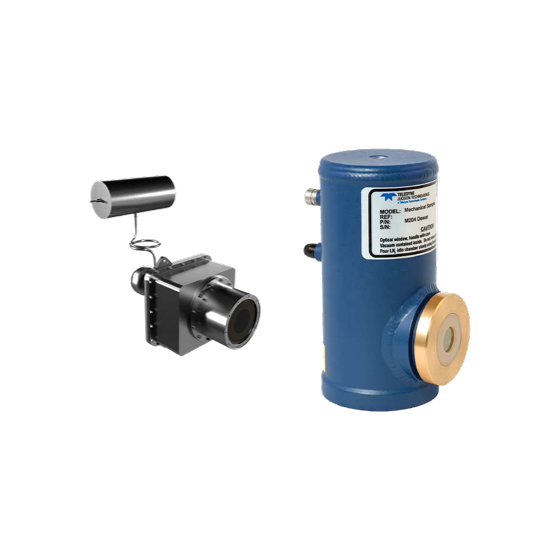

Teledyne Judson's InSb detector is a high-performance InSb (indium antimonide) detector with a long wavelength cutoff around 5.5 μm, optimized for sensitivity, response speed, impedance, and peak wavelength by operating at the appropriate temperature. These detectors demonstrate high reliability and performance across a wavelength range of 1.0 to 5.5 μm. The product comes in two types: cryocooled and liquid nitrogen cooled (LN2, dewar specification). The LN2 version ensures optimal performance by maintaining the necessary low temperatures to minimize thermal background. Additionally, the cryocooled package can operate without a refrigerant.
Inquire About This Product
basic information
Product Example 1) Cryogenic Cooling Model Model Number: J10D-J508-R01M-60 Wavelength Range: MWIR Sensor Size: 1.0mm Cut-off Wavelength: 5.4um Peak Wavelength: 4.8um Operating Temperature: -196℃ Product Example 2) Dewar Model Model Number: J10D-M204-R100U-60 Wavelength Range: MWIR Sensor Size: 0.1mm Cut-off Wavelength: 5.4um Peak Wavelength: 4.8um Operating Temperature: -196℃
Price range
P4
Delivery Time
Applications/Examples of results
• Thermal imaging diagnostic device • Thermal detection guidance device • Radiometer • Spectroscopic analysis device • FTIR (Fourier Transform Infrared Spectroscopy)
Detailed information
-
Detection capability and wavelength
Company information
Our staff, equipped with specialized skills and marketing abilities, searches for the latest cutting-edge equipment, including lasers, from around the world to offer to everyone in Japan. We wish to continue walking into the 21st century together with you. This is the desire of Keystone International.
