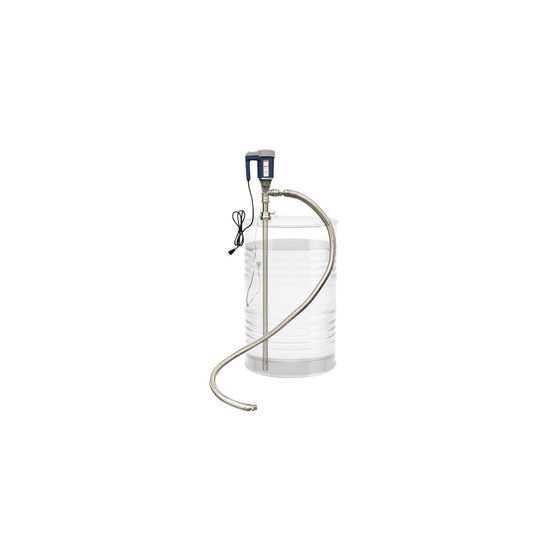

Electric Chemical Drum Pump CHD1-20SUS316/HL
CHD1-20SUS316／CHD1-20SUS316HL
In addition to the wetted part materials of PTFE and FFKM, SUS316 has been newly adopted for the main body material and wetted material! This allows for compatibility with even more chemicals.
**CHD1-SUS316 Series** CHD1-20SUS316 (For solvents / AC100V) CHD1-20SUS316HL (For solvents / AC100V / Hose-less specification) CHD2-20SUS316 (For solvents / AC230V) CHD2-20SUS316HL (For solvents / AC230V / Hose-less specification) ● Continuous operation possible ● Lightweight and compact body ● SUS316 specification with strong chemical resistance **Features** ● Compliant with PSE (Product Safety Electrical Appliance and Material) for safety and security ● Dedicated for JIS standard 200L closed drums (large cap G2) ● For low viscosity solvents (below 100cP) ● Discharge rate of 22L/min ● Discharge only ● Options for AC100V and AC230V types **Applications** ■ Lithium batteries (secondary batteries) ■ Dyeing, semiconductor, disinfectant manufacturing, automotive, home appliance factories ■ Surface treatment in metal plating factories ■ New energy sector **Compatible liquids** ■ Ethyl acetate ■ Butyl acetate ■ Hydrogen peroxide ■ Sodium hydroxide ■ Nitric acid (30% concentration)
Inquire About This Product
basic information
"About the Ball Valve with Gun Nozzle" Supports ball valve specifications as an option! By installing a ball valve, valve opening and closing operations are possible during liquid discharge. Model: CHD1-20SUS316/CHD1-20SUS316HL/CHD2-20SUS316/CHD2-20SUS316HL Compatible container: 200L closed drum (JIS standard: large plug G2/small plug G3/4) Liquid used: solvent Compatible viscosity: 100cP Power supply: AC100V/230V single phase Current: 2A Discharge pressure: 0.04Mpa Maximum discharge amount (at 1cP): 36L/min Maximum lift height: 4m Suction lift height: 2m Accessories: Discharge hose: SUS316 hose (2m x Φ19) Connection type: Rc3/4 Materials in contact with liquid: Main body/Pipe: SUS316/SUS(SCS14)/PTFE/ETFE Packing: PTFE/FFKM Power cord (m): 2 Weight (kg): 6.6/5.0/6.6/5.0
Price range
Delivery Time
Applications/Examples of results
**Improvement Example** Dividing Hydrogen Peroxide Current Situation / Problems × The pump for solvents is expensive × Manual pumps are time-consuming and tiring × Pumps break down quickly ⇩ Improvement Example Cost reduction achieved because it is inexpensive and durable Lightweight and easy to transfer from drums 〇 Time savings 〇 Cost reduction 〇 Ensured safety 〇 Reduced heavy labor burden *When using solvents, only materials that do not corrode should be used. *Not suitable for flammable or volatile liquids.
Detailed information
-
CHD1-20SUS316 (for solvent use / AC100V)
-
CHD1-20SUS316HL (for solvents / AC100V / without hose specification)
-
CHD2-20SUS316 (for solvents / AC230V)
-
CHD2-20SUS316HL (for solvents / AC230V / without hose specification)
