[Construction Example] Three-Dimensional Geocell Method "GeoWeb Retaining Wall Method"

Capable of accommodating changes in gradient! We propose the design and construction of retaining walls tailored to on-site needs.

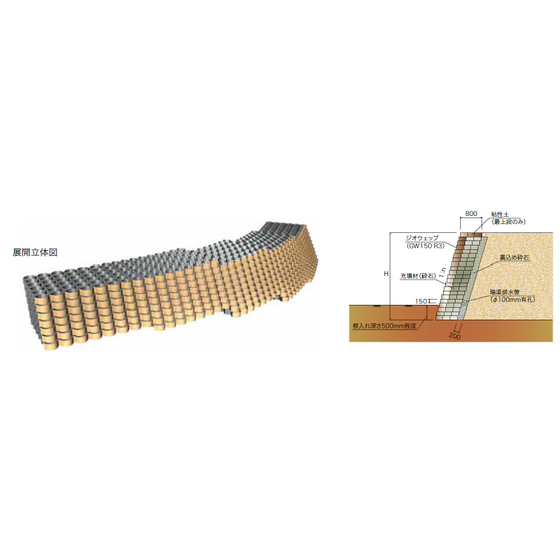

We would like to introduce a case study of the "GeoWeb Retaining Wall Method" using the 3D Geocell construction method. In this project, it was necessary to implement protective work for a slope that changes from a 5:1 cut slope to a 2:1 slope over a length of approximately 16 meters due to road improvement work. The method adopted is a product made by continuously pressing high-density polyethylene sheets into a honeycomb shape, allowing for the construction of a retaining wall structure by filling the expanded GeoWeb with crushed stone and soil while stacking it in a stepped manner. 【Case Overview】 ■Challenges - It was necessary to implement protective work for a slope that changes from a 5:1 cut slope to a 2:1 slope over a length of approximately 16 meters due to road improvement work. ■Results - By adjusting the setback width while stacking in a stepped manner, it was possible to construct a retaining wall that accommodates the changing slope. *For more details, please download the PDF or feel free to contact us.

Slope protection material
