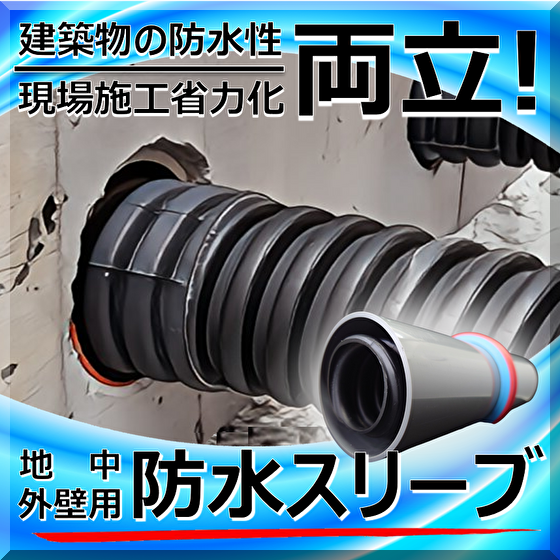

[Official Release] Waterproof Sleeve for Underground Walls "Pipe-in-Sleeve" (Abbreviated as PIS) Reducing Labor at Construction Sites! Enhancing Waterproof Performance of Buildings!

■Recently, our "Pipe-in-Sleeve," showcased at the JECA Fair 2025, is officially launched with great anticipation.■ In the underground wall section (underground beam sleeve), we have pre-treated the PVC sleeve and the outer space (gap) of the FEP with "waterproof treatment" at the factory, making it prefabricated for the site. No cumbersome work is required on-site; after the PIS installation, only joint connections are basically needed. Ensuring stable waterproofing! Achieving work efficiency and promoting flood prevention and water resistance. This is an innovative and advanced product for underground beam sleeve construction. <Features> ■ Excellent waterproof performance [Flood prevention and water resistance promotion] ■ Proposal for labor-saving at construction sites ■ Adaptable to individual design specifications of construction projects ■ Improved work efficiency, standardized quality, and enhanced maintenance [To designers and contractors] FEP pipe routing, bell mouth terminal installation, connection of different types of pipes (AQ type), and various connection parts of FEP can be arranged to fit the specifications of individual construction sites! Furthermore, it can also respond to unexpected leaks! It combines maintenance and serviceability, making it a versatile and highly adaptable product. (Feel free to request drawings) *For details, please request a catalog from "Contact Us" or view the PDF data from "Download"


Underground exterior wall sleeve - Labor saving "Pipe-in-Sleeve" water immersion measures/waterproofing

XlW8o1HYxR8vA5u1750919460_1750919488.png JdYbFu1AbvYcFck1750921196_1750921213.png Cduyz9mfbigkwrQ1750921525_1750921591.png AZCedyKzK3qwckx1750921272_1750921287.png cxhjbQAM95I2cMO1750921722_1750921739.png wRCtTy1WfdgpRsj1750921753_1750921773.png 0Ji0g5dtcNtDXIp1750921783_1750921817.png HX9yLDJ4Xi0qm5k1750921833_1750921844.png mTtz52XsvmZdjj91750921859_1750921875.png QRqdyjHK7ugZ6wQ1750921887_1750921907.png

Inquire About This Product

Related Videos

basic information

<Specifications> ●Water Resistance ・Test Value (Smooth Interior Pipe) 0.1MPa×72 hours (This product does not guarantee complete waterproofing.) ●Composition ・Sleeve Material: Rigid Polyvinyl Chloride Pipe (JIS K 6741) ・Sleeve Penetration Pipe: Underground Electric Wire Protection Pipe, Furukawa Electric Co., Ltd. Eflex ・Sealing Material: Curing Waterproof Material <Notes> * This product does not come with a "water stop ring." Please prepare a water stop material that matches the outer diameter of the sleeve according to the manufacturer's specifications. * For FEP/penetration pipe connections, please select straight joints and dissimilar pipe joints (AQ type) from the Aqua series by Furukawa Electric Co., Ltd. * The "waterproof performance" of the sealing material (curing waterproof material) is based on internal measurement values and is not a guaranteed value. [Contact Information] ・Planning and Proposal: Furukawa Elecom Co., Ltd. New Business Promotion Office TEL: +81 3-5297-8711 FAX: +81 3-5297-8705 ・Design and Manufacturing: EPJ INC. TEL: +81 3-5643-8137 FAX: +81 3-5643-8138 Email: info@epj-inc.co.jp

Price range

Please contact us for details

Delivery Time

Please contact us for details

Applications/Examples of results

■Development Concept■ "Labor-saving in Construction Sites" In modern construction projects, the aging of skilled workers and the departure of young people have led to a constant demand for both work efficiency and construction quality. By utilizing "prefabrication technology," we aim to solve the persistent issues at construction sites and extend the lifespan of buildings. Furthermore, we are developing groundbreaking products that also incorporate maintenance and upkeep performance! "Enhancing the Waterproofing Performance of Buildings" At each construction site, the narrow gaps between the pit, underground beam sleeves, and penetrating pipes require "water stop treatment" as mandated. According to the "Guidelines for Flood Prevention Measures for Electrical Equipment in Buildings" issued by the Ministry of Land, Infrastructure, Transport and Tourism and the Ministry of Economy, Trade and Industry, we are advocating for the development of products that possess safe and reliable waterproofing performance! <Areas of Demand> Underground beam sleeves (underground exterior wall sections) for various construction projects <Countermeasure Types> - Flood prevention construction: Guidelines for Flood Prevention Measures for Electrical Equipment in Buildings by the Ministry of Land, Infrastructure, Transport and Tourism / Ministry of Economy, Trade and Industry - Promotion of waterproofing: Concepts for Waterproofing of Sewer Facilities by the Ministry of Land, Infrastructure, Transport and Tourism, etc. 【Inquiry Project Ranking】 1st: Medical Facilities 2nd: Accommodation Facilities 3rd: Commercial Facilities 4th: Educational Facilities 5th: Offices (High-rise)

Detailed information

  • hKvbx9sjQget2tE1750923216_1750923232.png

    Pipe-in-sleeve connection 1

  • RZkQUg6nwRWCnKm1750923249_1750923263.png

    Pipe-in-sleeve connection 2

  • fnlA8EbX7NLuC3E1750923180_1750923204.png

    Pipe-in-sleeve connection 3

  • BVAZy5Ta6G4x6GG1750923335_1750923356.jpg

    After the installation of the pipe in the sleeve (after pouring) 1

  • dtLrPVRP9hb3HbM1750923282_1750923302.jpg

    After the installation of the pipe in the sleeve (after pouring) 2

Line up（16）

Model number overview
PIS30U Conduit pipe / FEP-30 * Rigid PVC pipe VP-50
PIS40U Through pipe / FEP-40 * Rigid PVC pipe VU-65
PIS50U Conduit Pipe / FEP-50 * Rigid Polyvinyl Chloride Pipe VU-75
PIS65U Conduit Pipe / FEP-65 * Rigid Polyvinyl Chloride Pipe VU-100
PIS80U Conduit Pipe / FEP-80 * Rigid Polyvinyl Chloride Pipe VU-125
PIS100U Conduit pipe / FEP-100 * Rigid PVC pipe VU-150
PIS125U Conduit Pipe / FEP-125 * Rigid Polyvinyl Chloride Pipe VU-200
PIS150U Conduit Pipe / FEP-150 * Rigid Polyvinyl Chloride Pipe VU-250
PIS30P Conduit Pipe / FEP-30 * Rigid Polyvinyl Chloride Pipe VP-50
PIS40P Conduit pipe / FEP-40 * Rigid polyvinyl chloride pipe VP-65
PIS50P Conduit Pipe / FEP-50 * Rigid PVC Pipe VP-80
PIS65P Conduit pipe / FEP-65 * Rigid polyvinyl chloride pipe VP-100
PIS80P Conduit pipe / FEP-80 * Rigid PVC pipe VP-125
PIS100P Conduit Pipe / FEP-100 * Rigid Polyvinyl Chloride Pipe VP-150
PIS125P Conduit Pipe / FEP-125 * Rigid Polyvinyl Chloride Pipe VP-200
PIS150P Conduit Pipe / FEP-150 * Rigid Polyvinyl Chloride Pipe VP-250
