Automating visual inspection of wafer defects.

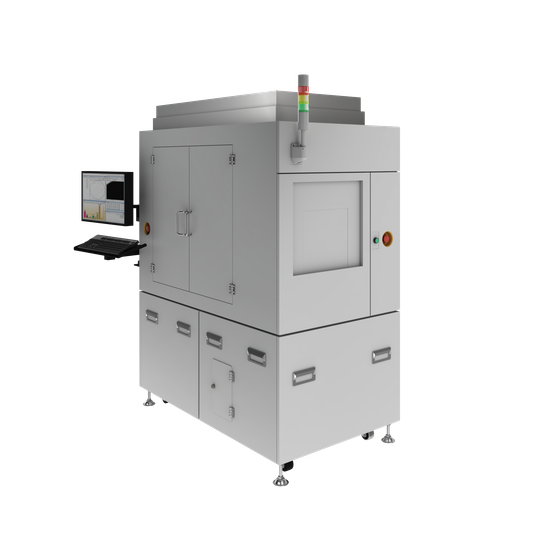

■This is a device that responds to the following requests and issues! - We want to automate visual inspection of wafer (substrate) defects. - We want to reduce and prevent variations in pass/fail judgments among inspectors. - We want to save inspection data and trace quality. - We want to automatically discriminate defects. ■Features of the device - It can automatically detect, extract, and discriminate visually identifiable defects. - We can propose an optical system optimized for the types of defects. - We can propose both manual and automatic transport (cassette to cassette). - It also implements AI functions, allowing for improved defect discrimination accuracy through ongoing learning.
Inquire About This Product
basic information
【Minimum Detectable Defect】 30um 【Target Shape】 Circular: Diameter less than 200mm Rectangular: Less than 140mm□ *If you would like to measure sizes larger than the above, please consult us. 【Inspection Time】 100PPH
Price information
For more details, please contact us.
Delivery Time
Applications/Examples of results
For more details, please contact us.
catalog（1）
Download All Catalogs
Company information
Kubota has supported a rich society and the circulation of nature by solving issues related to food, water, and the environment, which are essential for human survival. The Kubota Precision Equipment Business Unit and Kubota Instrumentation provide solutions based on "measurement and metrology technology" that meet the demands of various industries, including automation, labor-saving, high-precision measurement and control, and data processing, contributing to the development of society.
