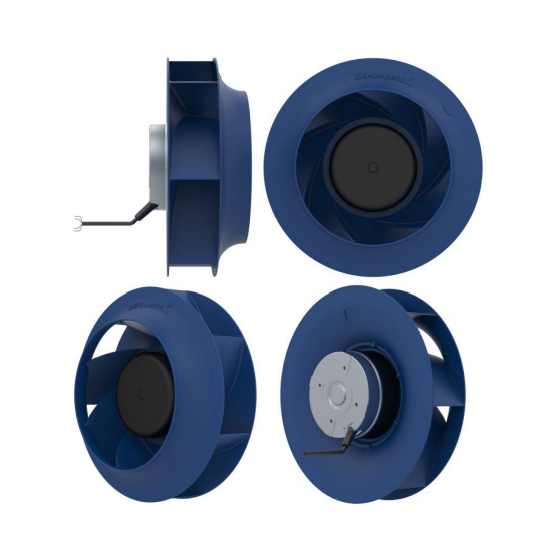

We can supply low-noise fan motors at a low cost, produced at Zeal Abegg's factory in China!
Production will begin sequentially after July 2024. Manufactured at Zeal Abegg's factory in China, providing low-noise fan motors at a low cost. Three blade diameters: 190, 225, and 250 mm. We are looking forward to demand in markets such as: - Cooling for server racks in data centers - Cooling for mobile phone base station panels - Cooling for inverters - Cooling for distribution boards - Cooling for EV fast chargers and more.
Inquire About This Product
basic information
Rated Voltage: 48V DC Operating Temperature: -25℃ to +60℃ Control: 0-10V or PWM Feedback: Thacho output IP Class: IP42 (for indoor use or within control cabinets) Certification: CE, CCC
Price information
Price negotiable depending on the number of units purchased.
Price range
P1
Delivery Time
※Production will begin sequentially after July 2024.
Applications/Examples of results
Data center server rack cooling Mobile phone base station panel cooling Inverter cooling Distribution board cooling EV fast charger cooling
Line up（3）
| Model number | overview |
|---|---|
| RH19V-8IP | Blade diameter 190mm size. Maximum air volume 780m3/h Maximum static pressure 600pa Maximum rotation speed 3600rpm Sound pressure level 70dB(A) (Rotation speed 3570rpm, Air volume 450m3/h, Static pressure 410Pa) |
| RH22V-8IP | Blade diameter 220mm size. Maximum air volume 1260m3/h Maximum static pressure 500pa Maximum rotation speed 2970rpm Sound pressure level 65dB(A) (Rotation speed 2560rpm, Air volume 750m3/h, Static pressure 290Pa) |
| RH25V-8IP | Blade diameter 250mm size. Maximum air volume 1300m3/h Maximum static pressure 400pa Maximum rotation speed 2280rpm Sound pressure level 65dB(A) (Rotation speed 2260rpm, Air volume 800m3/h, Static pressure 260Pa) |
catalog（1）
Download All Catalogs
Company information
We are the Japanese subsidiary established as a part of the globally renowned fan motor manufacturer, Ziehl-Abegg from Germany. Although the Japanese market is highly competitive, we are continuously developing products focused on high efficiency and low noise, and our products are active in various industries. We offer products that meet our customers' needs from a rich lineup or through customization. The outer rotor motor type was developed by Emil Ziehl, the founder of Ziehl-Abegg, and is currently sold by various manufacturers. While there are several EC fan manufacturers in Germany, our company is a pioneer in this field. As a better partner, we will support our customers' product development.
