Method of manufacturing torque sensor for forming spray coating.

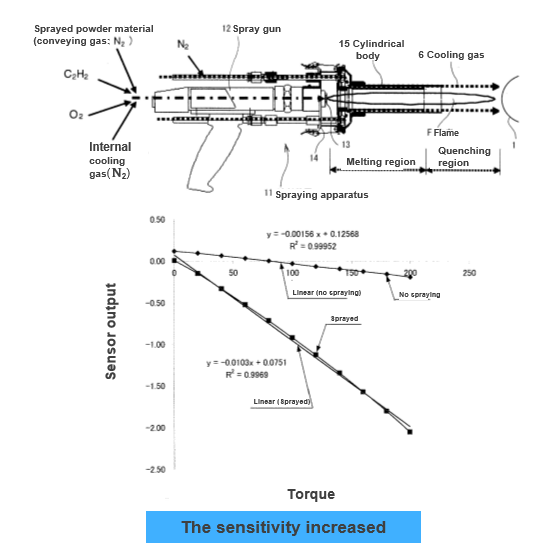

Since two characteristics of high permeability and high magnetostriction are required for the magnetic material constituting the magnetostrictive part of the rotating shaft of the conventional torque sensor, an amorphous alloy is suitable. However, when a amorphous alloy foil is fixed to the surface of the rotating shaft with an adhesive, there is a problem that sufficient detection characteristics cannot be obtained because adhesion to the rotating shaft is poor. In addition, even when a metallic spray coating is formed on the surface of the rotating shaft by a high-speed spraying process, there is a problem that a fine amorphous metal powder must be used, which increases the manufacturing cost. The invention has made it possible to provide a torque sensor and its manufacturing method with improved torque detection characteristics and manufacturing cost. The invention has a magnetostrictive part including a metallic glass coating on the surface of a rotating shaft. The metallic glass coating is characterized in that a flame including the metallic powder is jetted to melt the metallic powder, and the metallic glass coating is formed using a cooling method before the flame reaches the surface of the rotating shaft. Thus, a magnetostrictive part is formed easily and quickly. It also exhibits excellent characteristics for torque detection.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
catalog（1）
Download All Catalogs
Company information
The revenue generated from technology transfer is reinvested into universities and researchers as new research funding, which is used to create further research outcomes. To ensure the smooth operation of this cycle, known as the "Intellectual Creation Cycle," we will actively promote technology transfer. The types of seeds we handle include patents, know-how, databases, and programs. We have established a collaborative framework by concluding basic technology transfer agreements with the following universities (as of April 1, 2026): - Tohoku University - Hirosaki University - Iwate University - Akita University - Fukushima University - Yamagata University - Tohoku Gakuin University - Iwate Medical University - Fukushima Medical University - Aizu University - Miyagi University - Hokkaido University - Muroran Institute of Technology - Showa Medical University - Asahikawa Medical University
