One controller can manage temperature control for eight channels. This reduces installation space compared to installing multiple temperature controllers.
Measurement accuracy: ±0.3% of displayed value Sampling period: 0.5 seconds Temperature control for 4CH (MA900) and 8CH (MA901) with one unit Rich features including multi-memory area, contact input/output, and communication Plugin structure Available for purchase at the online shop (Shop RKC)
Inquire About This Product
basic information
Input points: 4 points (MA900), 8 points (MA901) Input types: 1) Thermocouples: K, J, T, S, R, E, B, N, W5Re/W26Re, U, L, PLII 2) Resistance temperature detectors: Pt100, JPt100 3) DC voltage: DC0–5V, DC1–5V, DC1–10V Sampling period: 0.5 seconds (MA900), 1 second (MA901) Measurement accuracy: ±(0.3% of displayed value + 1 digit) *Varies by input and range Output: 1) Relay contact output: 1a contact 2) SSR drive voltage pulse output: DC0/12V 3) Current output: DC0–20mA, DC4–20mA 4) Open collector output: Sink type Alarm output (up to 3 points): Temperature alarm, heater disconnection alarm, control loop disconnection alarm <Optional specifications> Communication function: RS-232C / RS-422A / RS-485 External contact input (5 points): RUN/STOP switch, memory area switch (4 points) <General specifications> Power supply voltage: AC100–240V / AC24V / DC24V Weight: Approximately 560g Safety standards: UL, cUL, CE marking, RCM
Price range
Delivery Time
Applications/Examples of results
Heater temperature control,
Detailed information
-

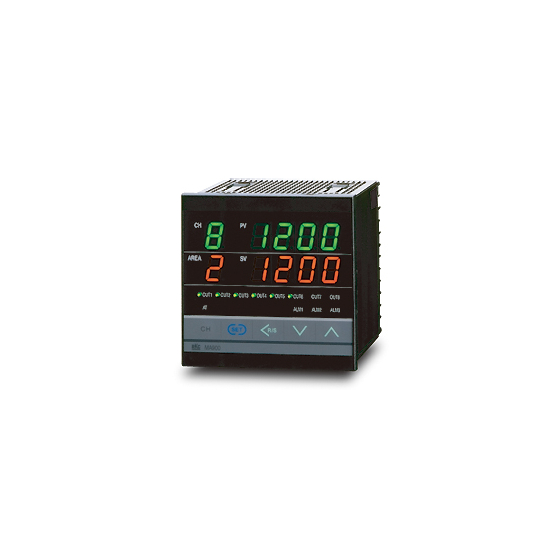

With a 96mm square size, it is possible to control up to 8 channels of temperature with one unit.
-
Diverse optional features
