Operate the solenoid valve with a smartphone for remote irrigation, and monitor the opening and closing status of the valve as well.

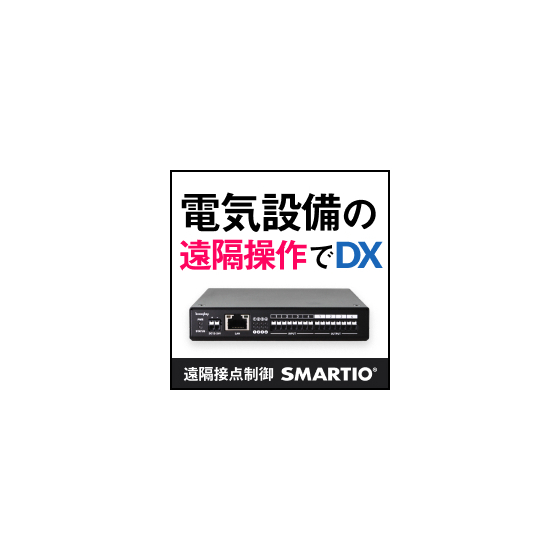

Model number: BSMT-R4P4 / Product name: SMARTIO
A remote IO control device equipped with a 4-pole IO terminal that can be operated with a smartphone. It is ideal for controlling solenoid valves.
You can retrofit the opening and closing of solenoid valves to existing control panels. By smartening up the equipment retroactively, you can reduce labor by operating the equipment from your smartphone without having to rush to the site. 【Product Features】 ✅ Output Ports: 4 points, no-voltage relay A contact output, maximum rated DC30V 2A / AC250V 2A ✅ The management screen (WebGUI) can be used on a smartphone/PC web browser without the need to install a dedicated app ✅ Operations are possible not only within a local LAN but also via the internet* *Operating via the internet requires the purchase of a "SMARTIO Cloud" license. ○ For more details on usage examples and installation methods, please feel free to contact us.
Inquire About This Product
basic information
Model number: BSMT-R4P4 Output ports: 4 points, non-voltage relay A contact output, maximum rated DC30V 2A / AC250V 2A Input ports: 4 points, non-isolated dry contact input, short-circuit current below 10mA Rated power supply voltage: Terminal block DC12 - 24V, USB-C DC5V Power consumption: Maximum 15W, typ 2W Operating temperature: -20℃ to 50℃ Operating humidity: 20% to 85% RH (no condensation) Operating environment: No flammable gases or corrosive gases / Dust (especially conductive) should not be excessive. Weight: 276g Dimensions: Width 120 × Height 25 × Depth 71mm (excluding protrusions) LAN: Standard 10Base-T / 100Base-TX, Connector: RJ45 Installation method: For slim breakers and contractual type breakers / Can be mounted on a mounting base.
Price range
P2
Delivery Time
P4
※If there is stock available
Applications/Examples of results
✅ Remote control of outdoor lighting with a smartphone You can turn the lighting of outdoor sports facilities on and off remotely, reducing labor time associated with traveling to the site. Additionally, it decreases the amount of work done in the dark, improving safety. ✅ Security sensors for temporary sites You can receive notifications from security motion sensors via email. This allows for easy initiation of security measures for temporary events and large facilities. ✅ Unmanned operation of rental spaces Electric locks and automatic doors can be easily integrated with existing reservation systems, enabling unmanned operation of rental conference rooms and spaces.
Detailed information
-
The lighting of outdoor sports facilities can be turned on and off remotely, reducing labor hours associated with traveling to the site. Additionally, it decreases on-site work in the dark, improving safety.
-
You can receive notifications from the security motion sensor via email. You can easily start security for temporary events and large facilities.
-
It enables easy integration of electric locks and automatic doors with existing reservation systems, allowing for unmanned operation of rental conference rooms and rental spaces.
Line up（1）
| Model number | overview |
|---|---|
| BSMT-R4P4 | This is a remote equipment control device with 4 digital inputs and 4 digital outputs. It can be accessed and operated via a web browser on a PC or smartphone. |
catalog（1）
Download All Catalogs
CAD data（1）
| Model number | overview | File |
|---|---|---|
| Specification diagram |
|
Company information
Digitalization of facility management operations Understanding and accomplishing tasks without going on-site Facility management is facing a labor shortage, making it difficult to maintain maintenance operations. BH products retrofit not only modern facilities but also aging ones. By digitalizing every aspect, we also reduce the burden of management.
