Buried plastic formwork system for rainwater storage 'Elevator Tank'
ELEVATOR TANK

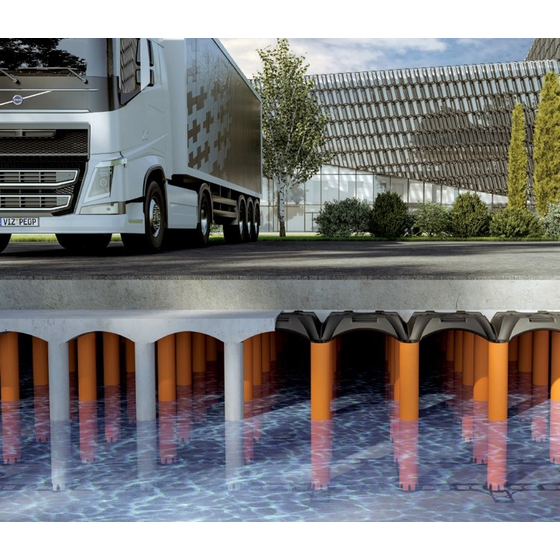

Buried water storage facilities that can be installed underground in buildings or beneath busy road surfaces.
This is an embedded formwork for concrete made from recycled polypropylene, which allows for adjustable pipe heights from 75 to 250 cm (up to 300 cm in the Max version) according to requirements, enabling on-site casting of rainwater storage tanks for disaster prevention and firefighting. The grid on the bottom allows for the installation of supporting PVC pipes at regular intervals. 【Features】 ■ Easy installation ■ Buildings and large vehicles can pass over it after completion ■ High load-bearing capacity: Designed for large vehicles of SLW60/HGV* 60 class with a load capacity ranging from 500 kg/m2 to 5000 kg/m2, depending on the thickness of the pipe and slab, and can be installed under roads and parking lots. * SLW: Schwerlastwagen (German: large truck), Heavy Goods Vehicle total weight 60t, compliant with old DIN1072 ■ This product has been recognized by GBC Italy for its contribution to achieving LEED certification. Registered patents in Europe and the US EP3947843C0, US11851892B2 Modular support members for manufacturing elevated and/or breathable reinforced concrete floors EP1605113B1 Modular member system for manufacturing elevated and/or breathable reinforced concrete floors
Inquire About This Product
basic information
【System Configuration Components】 ■Formwork ■Formwork Connector ■Pipe *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Uses】 ■ Rainwater storage tank ■ Social infrastructure and irrigation facilities ■ Firefighting water tank ■ Flood control *For more details, please refer to the PDF document or feel free to contact us.
Detailed information
-
Italy, used for preventing thawing in refrigerated warehouses.
-
Flood prevention measures for warehouses near the Hudson River in New Jersey, USA.
-
Flood prevention measures in Craig House, Edinburgh, Scotland.
-
During concrete pouring
Line up（15）
| Model number | overview |
|---|---|
| EELEVEN5858 | NEW ELEVETOR |
| EELTUBN0000 | TUBE D125 each m |
| EELLISS0150 | STRIP 125/160 |
| EELBAST5858 | TRIO BASE |
| EELBASE5858 | CUATRO BASE |
| EELEMAX7171 | ELEVETOR MAX |
| EELTUBN0000 | TUBE D125 each m |
| EELTUBS0000 | TUBE D160 each m |
| EELTUBD0000 | TUBE D200 each m |
| EELLISS0150 | STRIP 125/160 |
| EELLISD0150 | STRIP 200 |
| EBASEMA7171 | BASE 125 |
| EBASEMS7171 | BASE 160 |
| EBASEMD7171 | BASE 200 |
| EDISTEM7171 | SPACER |
catalog（2）
Download All Catalogs
Company information
Geoplast is a leading company based in northern Italy that specializes in cutting-edge recycled plastic products for the construction industry. Even after their products reach the end of their life cycle, they are horizontally recycled, contributing to decarbonization and the advancement of Construction GX. In Japan, Tsukamoto Agency, Geoplast’s authorized distributor, serves as the company’s point of contact.
