Tohoku University Technology: Optical information apparatus and microscope system: T15-198
Rapid obtaining of optical information in the depth direction to create 3D optical image!

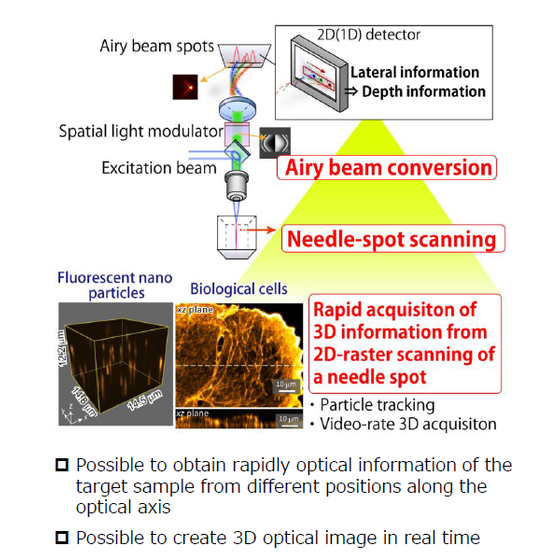

Laser scanning microscopy, used for observing a sample by scanning a laser focal spot and detecting reflecting, scattering, or fluorescence signals from a target can be increased acquisition speed of 2D images by high-speed raster scanning of a laser beam. But the rapid acquisition of 3D images is substantially restricted due to the need of changing the moving observation plane. Using the present invention can be possible the optical 3D imaging acquired at once without moving the optical system or target, because optical information along the optical axis obtained in different lateral position on the detector by separately concentrating the lights.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
