Tohoku University Technology: Co-based magnetic alloy for high TMR element: T19-018
TMR ratio over 200% with no B addition, low temperature heat treatment and sputtered film formation

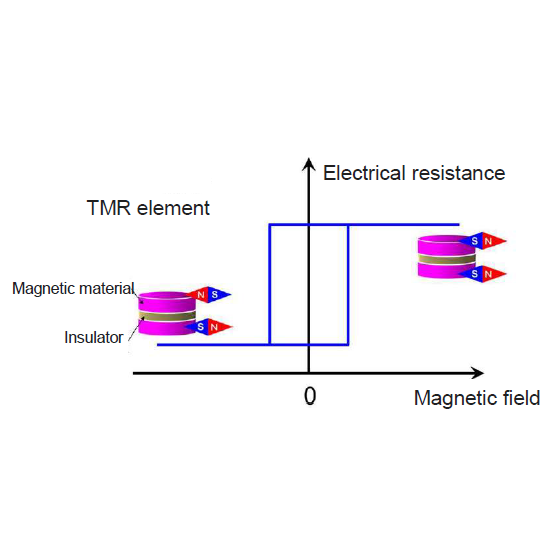

TMR element showing the tunnel magnetoresistance (TMR) effect, has been applied to products such as magnetic sensor, non-volatile memory, etc. The TMR ratio, which represents the variation ratio of element resistance, is one of the element performance indicator and it is an important characteristic that influences the specification of the applied product. TMR element using amorphous FeCoB magnetic alloy and MgO tunnel barrier is currently the main material and can be fabricated by sputtering method which is suitable for mass production. This is an excellent material which becomes FeCo/MgO crystal when B is diffused by heat-treating the element and shows 200-600% TMR ratio. However, heat treatment with B diffusion could be a factor in reducing the functionality of other layers adjacent to FeCo. This invention provides a technology for Co-based magnetic irregular alloy showing TMR ratio comparable to FeCoB by low temperature heat treatment, even without the addition of B.
Inquire About This Product
basic information
For details, please contact us or refer to the PDF.
Price range
Delivery Time
Applications/Examples of results
For details, please contact us or refer to the PDF.
