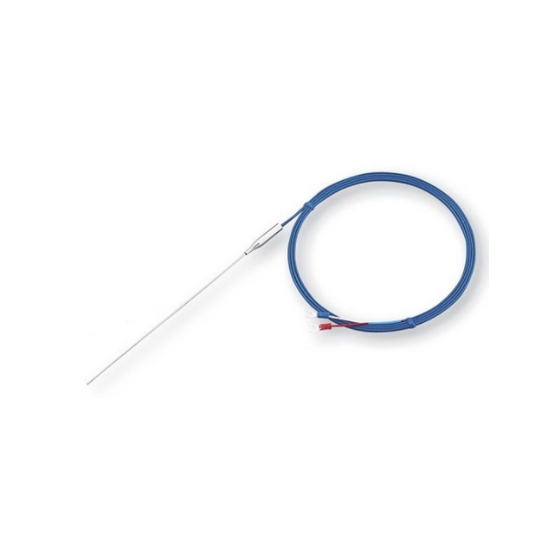

A thermocouple with excellent responsiveness and seismic resistance.
The sheath thermocouple has a structure filled with magnesium oxide between the metal protective tube (sheath) and the wire, providing excellent responsiveness and seismic resistance. It is also well-suited for high-temperature use. The diameter of the protective tube can range from Φ0.5 to Φ8. You can choose from straight types, L-shaped designs, and options with terminal boxes to suit your application.
Inquire About This Product
basic information
Types of sheath thermocouples: K, E, J, T Sheath outer diameter: 0.5mm (K, T types), 1.0mm, 1.6mm, 2.3mm, 3.2mm, 4.8mm, 6.4mm, 8.0mm Sheath length: 100 to 10,000mm Material: SUS316 Accuracy: JIS Class 2, *Class 1 production possible Thermal contact: grounded type, ungrounded type
Price range
Delivery Time
Applications/Examples of results
Temperatures of various furnaces, heat treatment temperatures, fluid temperatures, temperatures of plastic molding machines, temperatures during food manufacturing processes.
Detailed information
-
Terminal box equipped sheath thermocouple
-
L-type sheath thermocouple
-
Metal connector sheath thermocouple
