Portable and lightweight coater that can be used in any research environment. Currently, a video introduction is available on our website.

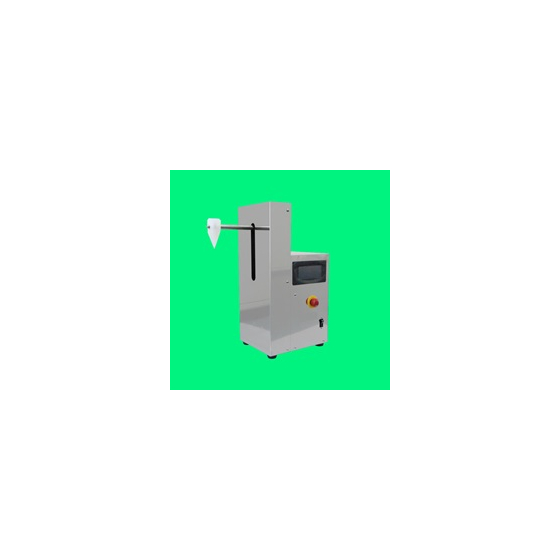

The portable dip coater is a lightweight and compact model with a 150-millimeter stroke and a minimum speed of 1 micrometer per second. It is easy to move and install, making it suitable for transport between laboratories and for use in environments with limited experimental space. Despite its small size, it achieves high-precision film formation, allowing for flexible operation suitable for prototyping and simple evaluations. --------------------------------------------- Currently, a video introduction is available on the HP. ---------------------------------------------
Inquire About This Product
basic information
【Main Specifications】 1. Stroke: 150mm 2. Minimum Speed: 1μm/sec 3. Maximum Speed: 20,000mm/sec 4. Operation Method: Touch Panel 5. Screen Language: Japanese 6. Number of Processing Speed Change Points: None 7. Number of Stop Position Designation Points: None 8. Number of Stop Time Designation Points: None 9. Continuous Operation Mode: None 10. Manual Operation Mode: None 11. Number of Stored Programs: None 12. Monitoring Function: Current Speed: Yes 13. Monitoring Function: Current Position: No 14. Monitoring Function: Remaining Operation Time: No 15. Repetitive Operation Function: No 16. Standard Clip: PP Material 17. Utility: AC100V, 200VA 18. Portable Weight: 1kg 19. Maximum Processing Size: H:150mm 20. Linear Operation Mode: No 21. Device Size: Excluding Protrusions (Weight): W:410×D:210×H:495mm (8kg) *For more details, please download the catalog or contact us.
Price range
P3
Delivery Time
P4
Applications/Examples of results
It is being introduced in the production of test specimens in laboratories, field experiments, and practical training in educational settings. In industrial applications, it is used as a simple coating facility for on-site evaluation and prototype lines.
