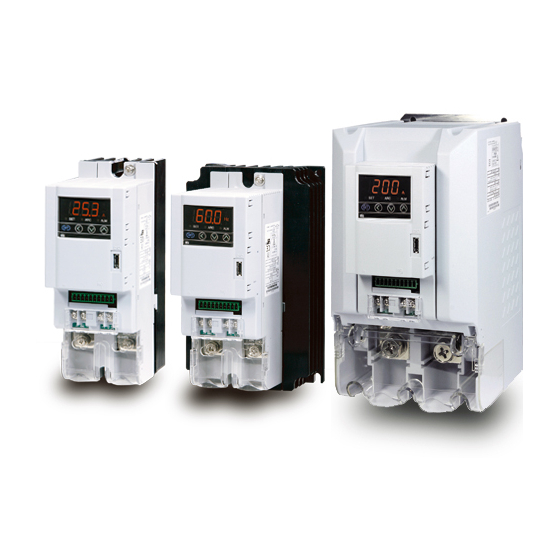

Compatible with load voltage AC 380 to 480V. Complies with UL and CE marking.
Maximum load capacity: AC20A, AC30A, AC45A, AC60A, AC80A, AC100A, AC150A, AC200A Power supply voltage: AC380–480V Control method: Phase control, zero-cross control Loader communication compatible Easy setup via front display and operation keys UL, CE marking compliant
Inquire About This Product
basic information
Control method: Phase control / Zero-cross control (switchable) Maximum load capacity: AC20A, AC30A, AC45A, AC60A, AC80A, AC100A, AC150A, AC200A Applicable load: Linear (R: resistive) load (Phase control: transformer primary side control possible) Input signal: DC4–20mA, DC1–5V, DC0–10V, DC0/12V Output modes: 1) Phase angle proportional, voltage proportional, voltage squared proportional (standard) 2) Constant current control (optional) Power supply frequency: 50/60Hz compatible (automatic detection) Load power supply voltage: AC323–528V (including power supply voltage fluctuations) Rated: AC380–480V Standard features: Automatic/manual switching (external manual setting is optional), output limiter, base-up setting (output bias), slope setting function (external setting is optional), soft start/soft stop function, two-position control (external upper and lower limit settings are optional) <Optional features> Heater disconnection alarm, current limiter, constant current control <General specifications> Power supply voltage (rated): AC100–240V Weight: 20A/30A type approximately 0.9kg, 45A/60A type approximately 1.4kg, 80A/100A type approximately 1.9kg
Price range
Delivery Time
Applications/Examples of results
Heater power control. Temperature control.
Detailed information
-
It is equipped with a variety of standard features such as external contact input, soft up (soft start) / soft down, manual / automatic switching, slope setting, output limiter, output bias, input-phase angle proportional / input-voltage proportional / input-power phase angle proportional switching, and more.
-
■This is a digital control device equipped with a display and setting keys at the front. ■With a 0-second setting for soft up (soft start) / soft down, it responds quickly and can accommodate rapid heating.
-
■Equipped with a front loader communication port, maintenance on-site is improved. ■We provide the adjustment instrument and indicator setting data management support tool PROTEM2.
